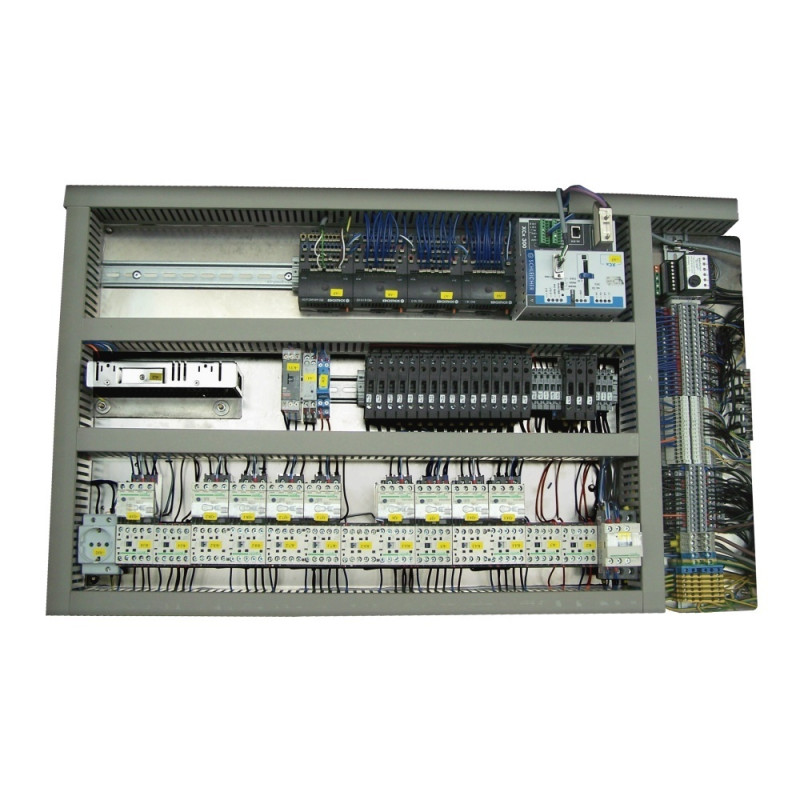

Mounting plate Complete SR3 Dicer No. 70 and Higher
| Pos No. | Part no. | Description | Add Info | Required | |
 |
1 | F41955 | Mounting plate | SR 3 | 1 |
 |
2 | F28731 | Cable duct | 80 x 30 x 2000 | 3.23 m |
 |
3 | F22205 | Top-hat rail | 35 x 7.5 x 2000 | 2.34 m |
 |
4 | F250109 | plate / sheet | 190 x 60 x 3 | 1 |
 |
5 | F21035 | Disc | Ø 6,5 x Ø 20 x 2 | 2 |
 |
6 | F20258 | Washer | DIN125 A 6,4 | 3 |
 |
7 | F24031 | Spring lock washer | DIN127 B 6 | 5 |
 |
8 | F20203 | Hexagonal nut | DIN934 M 6 | 5 |
 |
9 | F27057 | Phase sequence relay | IK 9179 | 1 |
 |
10 | F26773 | Solenoid monitoring station | MÜZ 602/24V | 1 |
 |
11 | F249983 | PLC-Module | XCS 300 C | 1 |
 |
12 | F253538 | CAN bus plug with 2 outlets | Subcon-Plus F2 | 1 |
 |
13 | F29048 | PLC-Module | RIO 16I / KE | 1 |
 |
14 | F29049 | PLC-Module | RIO 16O / KE | 1 |
 |
15 | F29050 | PLC-Module | RIO 8I 8I/O | 1 |
 |
16 | F28471 | PLC-Module | RIO 4AI/4AO +10V-10V | 1 |
 |
17 | F27064 | Fuse 3.15 AT | 5,0 x 20 mm | 8 |
 |
18 | F27065 | Side plate grey | FEM 8S | 2 |
 |
19 | F27066 | Fuse terminal black | 6.4 x 32 mm | 3 |
 |
20 | F27067 | Side plate black | FEM 13U | 1 |
|
21 | 105011 | Fuse 3.15 AT | 6,3 x 32 mm | 4 |
|
22 | F28281 | Fuse 20 AT | 6,3 x 32 mm | 6 |
|
23 | 105010 | Fuse 1.0 AT | 6,3 x 32 mm | 3 |
|
24 | 105012 | Fuse 6,3 AT | 6,3 x 32 mm | 4 |
 |
25 | F248631 | Power supply 230VAC/24VDC | SP75-24 | 1 |
 |
26 | 104980 | Power contactor 24VDC | LC1 D38BD | 1 |
 |
27 | F27095 | Power contactor 230VAC | LC1 K0910P7 | 1 |
 |
28 | F27091 | Power contactor 24VDC | LP1-K0910 BD3 | 4 |
 |
9 | F20916 | turn contactor | LP2-KO910 BD3 | 4 |
 |
30 | F41540 | Relay | 1 We / 24 VDC / 10A | 1 |
 |
31 | F27072 | Time relay | CT-ARE | 1 |
 |
32 | F27076 | Motor protect relay 3.7 -5.5 A | LR 2-K0312 | 2 |
 |
33 | F20911 | Motor protect. relay 0.8 -1.2A | LR 2-K0306 | 2 |
 |
34 | F28668 | Motor protect relay 0.36-0.54A | LR 2-K0304 | 1 |
 |
35 | F22287 | Motor protect relay 2.6 -3.7 A | LR 2-K0310 | 2 |
 |
36 | F247636 | Resistor | 120 Ohm / 1 W | 1 |
 |
37 | F27053 | Terminal - 3x, grey | 2.5mm² | 35 |
 |
38 | F28278 | End terminal | BNK - BADL | 3 |
 |
39 | F27054 | Terminal - 2x, blue | 4mm² | 1 |
 |
40 | F20721 | Side plate blue | FEM 4A | 1 |
 |
41 | F20719 | Protective conductor terminal | 2x 4mm² | 6 |
 |
42 | 100344 | Terminal - 2x with PU | 2.5mm² | 17 |
 |
43 | F28338 | Side plate grey | FED 3E | 2 |
 |
44 | 101594 | Side plate grey | TWI 4/V0 | 1 |
 |
45 | F28275 | squash connector | BJD 6 | 2 |
 |
46 | 106704 | Socket | PAP | 1 |
 |
47 | F27077 | Motor protect. relay 5.5 -8.0A | LR 2-K0314 | 2 |
 |
48 | 106639 | Compact-Flash 32/48/64/128MB | SR 3 / SPS | 1 |
 |
49 | F148541 | Sticker | BMK02 | 1 |
 |
50 | 104984 | Terminal - 1x, grey | 6mm² | 3 |
 |
51 | 104986 | Side plate grey | AP6 | 1 |
|
52 | 105013 | Fuse 10 AT | 6,3 x 32 mm | 1 |
 |
53 | F28198 | Fuse 16 AT | 6,3 x 32 mm | 9 |
 |
54 | 104158 | Shield clamp | 3 - 6 mm | 1 |
 |
55 | 104990 | Protective conductor terminal | 2x 4mm² | 1 |
