Pacesetter Main Shaft Exploded View

Type: Various Parts
Brand: Patty-O-Matic
U/M: Each
Stock: On Order
CM Product Code: 4403
* Pacesetter Main Shaft Exploded View:

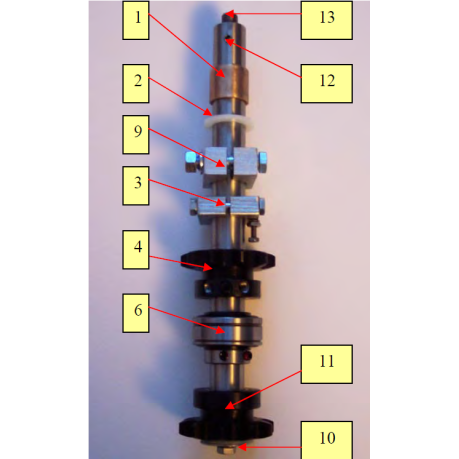

Pacesetter Main Shaft Exploded View

Item# Descriptiom Part#
1 Main Shaft Bushing 470
2 Main Shaft Thrust Washer 469-1
3 Secondary Shaft Clamp 467A
4 Timing Sprocket 465T
6 Main Shaft Bearing 464A
9 Main Shaft Clamp Hardware 468
10 Main Shaft Fender Washer and Hardware 240-1
11 Main Shaft Driven Sprocket 240
12 Main Shaft Threaded Insert Set Screw 464-2
13 Main Shaft Insert 464-1
