Patty-O-Matic Protege Transmission and Main Shaft Assembly
- Stock: On order
- Brand: Patty-O-Matic
- Type: Various Parts
-90x90h.png "PaceSetter Guide Rail")

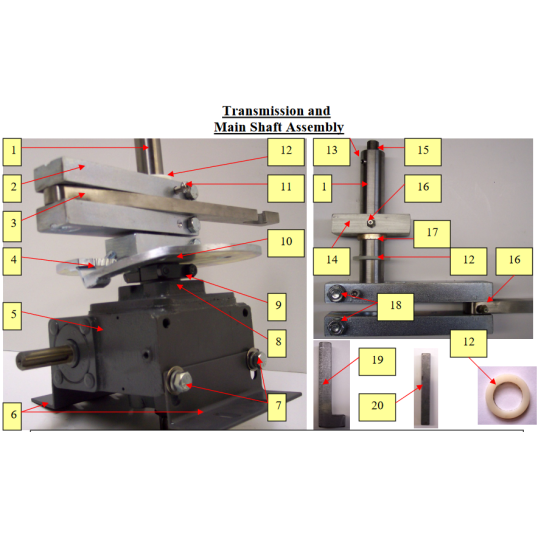

Patty-O-Matic Protege Transmission and Main Shaft Assembly
 |
Item # | Description | Part # | |
| 1 | Protégé Main Shaft w/ Insert and Set Screw | PRO464 | ||
| 2 | Protégé Crank-Connecting Arm Assembly | PRO455 | ||
| 3 | Protégé Connecting Arm | N/A | ||
| 4 | Protégé Knock Out Cam | PRO472 | ||
| 5 | Protégé Transmission | PRO484A | ||
| 6 | Protégé Transmission Brackets | PRO484B | ||
| 7 | Protégé Transmission Bracket Hardware(Set of 4) | PRO484C | ||
| 8 | Protégé Thick Cam Thrust Washer | PRO472A | ||
| 9 | Protégé Cam Spacer Clamp | PRO472C | ||
| 10 | Protégé Thin Cam Thrust Washer | PRO472B | ||
| 11 | Protégé Main Shaft Drive Bolt and Nut | PRO464-1D | ||
| 12 | Protégé Main Shaft Thrust Washer | PRO469-1 | ||
| 13 | Protégé Main Shaft Insert Set Screw | PRO464-1A | ||
| 14 | Protégé Main Shaft Block c/w Bushing | PRO464A | ||
| 15 | Protégé Main Shaft Insert | PRO464-1 | ||
| 16 | Protégé Grease Fitting | PRO464B | ||
| 17 | Protégé Main Shaft Block Bushing | PRO464C | ||
| 18 | Protégé Crank-Connecting Arm Hardware(2 Required) | PRO455-1 | ||
| 19 | Protégé L-Key | PRO452A | ||
| 20 | Protégé Transmission Pulley Drive Key | PRO484C1 |
