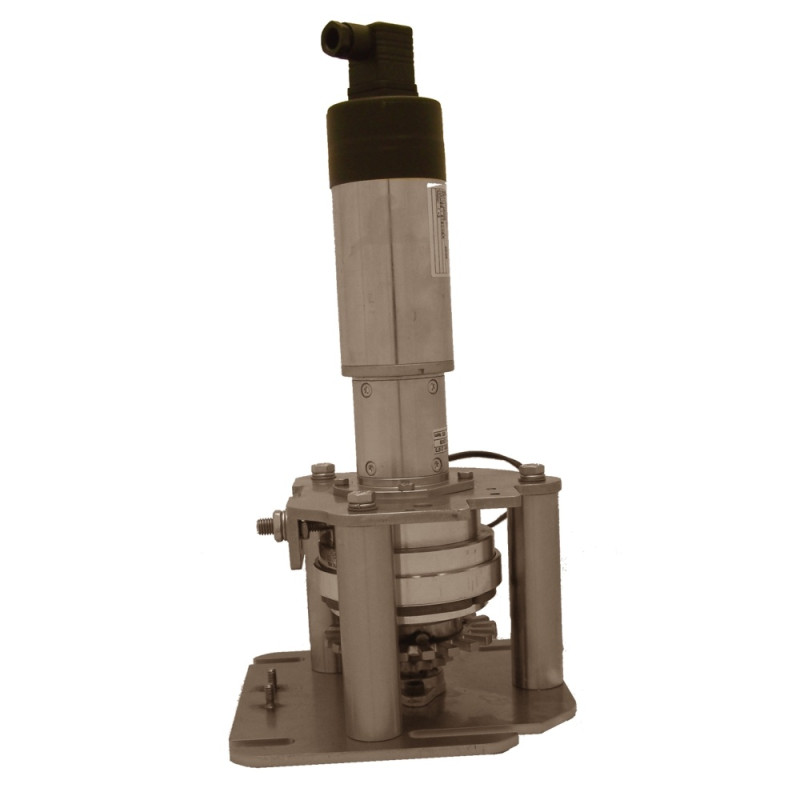

Pre-compacting Complete

Type: 105029
Ships from: FOB Brampton Canada
U/M: Each
Stock: On Order
CM: 750

Note: Shipping to be Determined.

* Pre-compacting SR2-Turbo No. 74 and higher:

CM Machine Services Ltd. Product Information

To make Purchase Call 905-793-3994 or Email sales@cmmachineservices.net Prices are subject to change without notice.

Pre-compacting Complete

Type: 105029
Location: FOB Brampton Canada
U/M: Each
Stock: On Order
CM Product Code: 750

Note: Shipping to be Determined.

* Pre-compacting SR2-Turbo No. 74 and higher:
--103354 Housing
--F20258 Washer
--F24031 Spring lock washer
--F26145 Hexagonal nut
--F20560 Cylinder head screw
--F20624 Flange bearing
--F27788 Tapered ball bearing
--F28109 Disc
--F28109a Compensating disc
--F28109b Compensating disc
--105026 Ring
--105028 Signal plate
--F25432 Gewindestift
--F26987 Chain wheel shaft
--F26363 Spring key
--F26992 Plate / Sheet
-- F26993 Sechskantschraube
--F26994 Threaded pin
--F20047 Hexagonal nut
--F26995 Disc
--F26985 Shaft
--F20208 Senkschraube
--F21260 Federring
-- F22449 Sechskantschraube
--F27511 Single chain
--F26379 Spring lock washer
--F26379 Spring lock washer
--F27693 U-Scheibe
--F20402 Sechskantschraube
--F22907 Scheibe
--F41816 Gear motor
--105025 Solenoid coupling
--F20712 Shrink hose

Pos. No.	Part No.	Description	Add. Info	Required
1	103354	Housing	SR 2 Turbo	1
2	F20258	Washer	DIN125 A 6,4	2
3	F24031	Spring lock washer	DIN127 B 6	2
4	F26145	Hexagonal nut	DIN934 M 6	2
5	F20560	Cylinder head screw	DIN912 M 6 x 22	2
6	F20624	Flange bearing	UCFL 001 2-Loch	1
7	F27788	Tapered ball bearing	DIN628 - 3201 2RS	1
8	F28109	Disc	Ø 12 x Ø 18 x 0,1	3
9	F28109a	Compensating disc	Ø 12 x Ø 18 x 0,25	1
10	F28109b	Compensating disc	Ø 12 x Ø 18 x 0,5	1
11	105026	Ring	Ø 12,5 x Ø 25 x 6,3	1
12	105028	Signal plate	SR 2 T/ SR 2 / SR 3	1
13	F25432	Gewindestift	DIN914 M 6 x 10	1
14	F26987	Chain wheel shaft	Ø 50 x 80 Z 15	1
15	F26363	Spring key	A 6 x 6 x 18	1
16	F26992	Plate / Sheet	160,5 x 156 x 40 x 6	1
17	F26993	Sechskantschraube	DIN933 M 5 x 10	4
18	F26994	Threaded pin	M 10 x 45	1
19	F20047	Hexagonal nut	DIN439 M 10	2
20	F26995	Disc	Ø 12,1 x Ø 25 x 2	1
21	F26985	Shaft	Ø 30 x 113,5	3
22	F20208	Senkschraube	DIN7991 M 8 x 20	3
23	F21260	Federring	DIN127 B 8	3
24	F22449	Sechskantschraube	DIN933 M 8 x 20	3
25	F27511	Single chain	3/8 x 7/32"	1
26	F26379	Spring lock washer	DIN127 B 10	1
27	F27693	U-Scheibe	DIN125 A 10,5	1
28	F20402	Sechskantschraube	DIN933 M10 x 30	4
29	F26379	Spring lock washer	DIN127 B 10	4
30	F22907	Scheibe	Ø 10,5 x Ø 35 x 3	4
31	F41816	Gear motor	GR 63*55	1
32	105025	Solenoid coupling	14.105.10.3.1	1
33	F20712	Shrink hose	HIS - 3/16"	350
