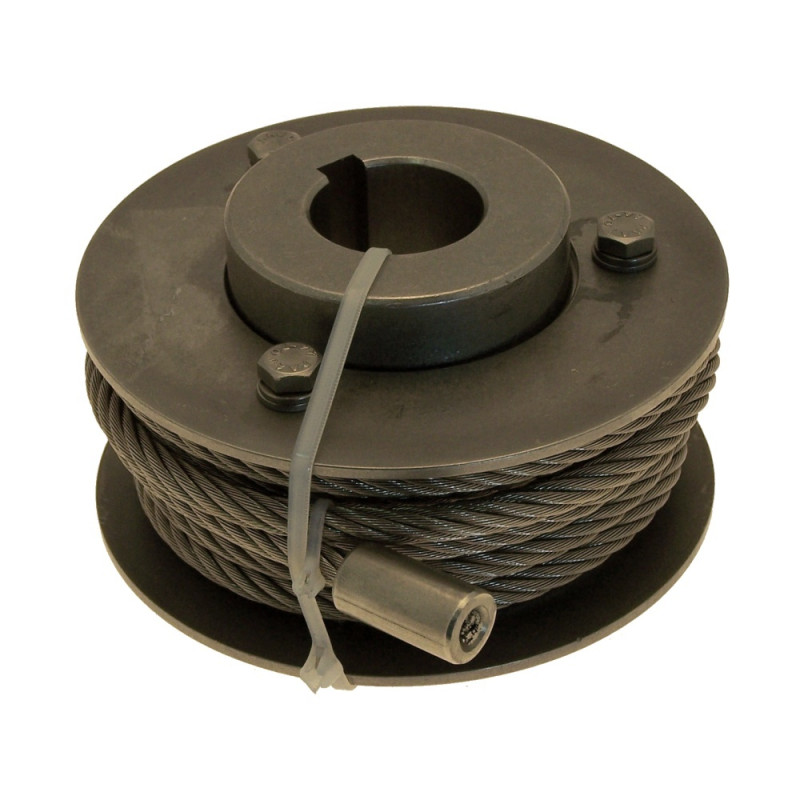

Rolle Exploded View 2 IR56 No. 473 and Higher

Type: F440963
Ships from: FOB Brampton Canada
U/M: Each
Stock: On Order
CM: 1716

* Rolle Exploded View 2 IR 56 Facelift No. 473 and higher:

CM Machine Services Ltd. Product Information

To make Purchase Call 905-793-3994 or Email sales@cmmachineservices.net Prices are subject to change without notice.

Rolle Exploded View 2 IR56 No. 473 and Higher

Type: F440963
Location: FOB Brampton Canada
U/M: Each
Stock: On Order
CM Product Code: 1716

* Rolle Exploded View 2 IR 56 Facelift No. 473 and higher:
--F29344 Rolle
-- F29345 Rope
-- F241278 Disc
-- F241279 Disc
-- F20258 Washer
-- F24031 Spring lock washer
--F21047 Hexagonal bolt

Rolle Exploded View 2 IR56 No. 473 and Higher

Pos No.	Part No.	Description	Add Info	Required
1	F29344	Rolle	Ø 30 x Ø 93 x 58	1
2	F29345	Rope	Ø 6 x Ø 19 x 2500	1
3	F241278	Disc	Ø 47 x Ø 115 x 2,5	1
4	F241279	Disc	Ø 62 x Ø 115 x 2,5	1
5	F20258	Washer	DIN125 A 6,4	8
6	F24031	Spring lock washer	DIN127 B 6	8
7	F21047	Hexagonal bolt	DIN933 M 6 x 12	8

CM Machine Services Ltd. | 55 Stafford Drive Unit "I" | Brampton, On L6W 1L3

PH: 905-793-3994 | Contact: sales@cmmachineservices.net

Description

Rolle Exploded View 2 IR56 No. 473 and Higher

Pos No.	Part No.	Description	Add Info	Required
1	F29344	Rolle	Ø 30 x Ø 93 x 58	1
2	F29345	Rope	Ø 6 x Ø 19 x 2500	1
3	F241278	Disc	Ø 47 x Ø 115 x 2,5	1
4	F241279	Disc	Ø 62 x Ø 115 x 2,5	1
5	F20258	Washer	DIN125 A 6,4	8
6	F24031	Spring lock washer	DIN127 B 6	8
7	F21047	Hexagonal bolt	DIN933 M 6 x 12	8
