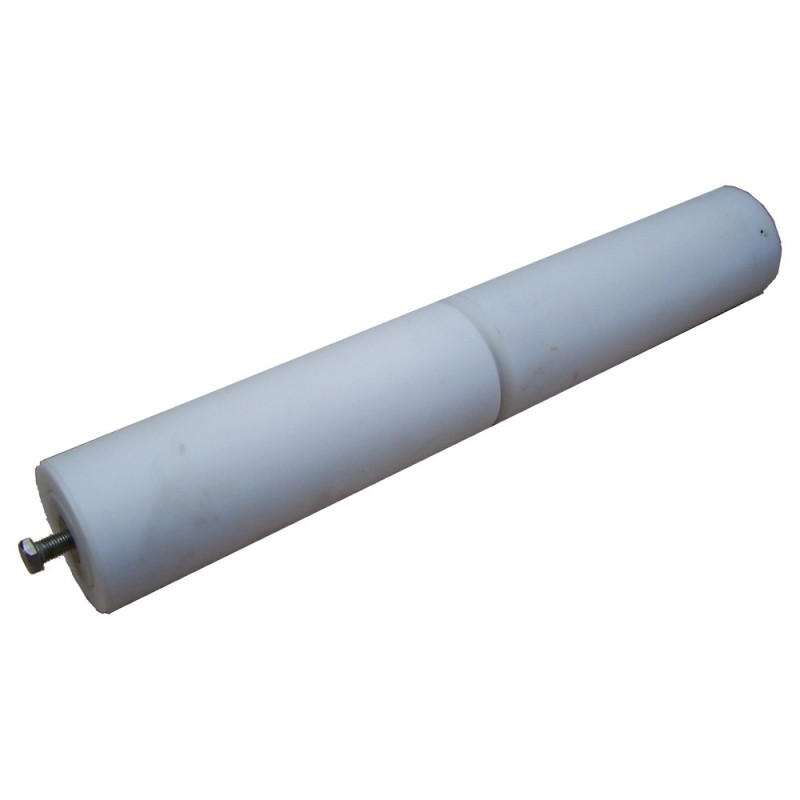

Roller Exploded View
Type: F450571
Brand: 1037
Location: FOB Brampton Canada
U/M: Each
Stock: On Order
CM Product Code: 2216
Brand: 1037
Location: FOB Brampton Canada
U/M: Each
Stock: On Order
CM Product Code: 2216
Pos. No.  |
Part No. | Description | Add. Info | Required | |
|---|---|---|---|---|---|
 |
1 | F250572 | drum | Ø 40 x Ø 115 x 350 | 2 |
 |
2 | F23386 | Tapered ball bearing | DIN628 - 3207 2RS | 4 |
 |
3 | F250574 | Ring | Ø 40 x Ø 72 x 30 | 1 |
 |
4 | F27920 | O-ring | Ø 57 x 2,5 | 2 |
 |
5 | F250573 | Shaft | Ø 35 x 701 | 1 |
 |
6 | F20263 | Locking ring | DIN471 Ø 35 x 1,5 | 2 |
 |
7 | F250575 | Ring | Ø 35.2 x Ø 72 x 22 | 2 |
 |
8 | F28040 | Radial shaft seal | Ø 35 x Ø 62 x 7 | 4 |
