Switch Box Assembly Ruhle SR3 F447824
Type: F447824
Ships from: FOB Brampton Canada
U/M: Each
Stock: On Order
CM: 1168
Ships from: FOB Brampton Canada
U/M: Each
Stock: On Order
CM: 1168
Note: Shipping to be Determined.

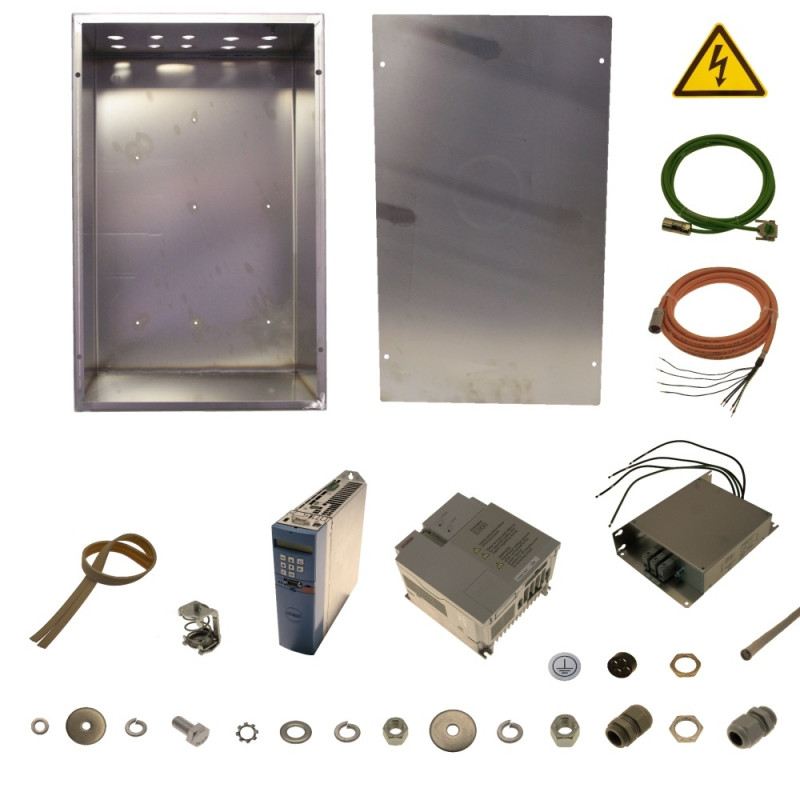

Switch Box Assembly for SR3 Meat Dicer No. 35 and Higher
| Pos No. | Part No. | Description | Add Info | Required | |
 |
1 | 102745 | Switch box | SR 3 | 1 |
 |
2 | F21045 | Washer | DIN125 A 5,3 | 6 |
 |
3 | F22116 | Disc | Ø 6,5 x Ø 30 x 3 | 4 |
 |
4 | F20260 | Spring lock washer | DIN127 B 5 | 10 |
 |
5 | F26993 | Hexagonal bolt | DIN933 M 5 x 10 | 10 |
 |
6 | F28732 | Lock washer | DIN6797-A ø 6,4 | 1 |
 |
7 | F20258 | Washer | DIN125 A 6,4 | 1 |
|
8 | F24031 | Spring lock washer | DIN127 B 6 | 1 |
 |
9 | F20203 | Hexagonal nut | DIN934 M 6 | 1 |
 |
10 | F247826 | Lid | 554 x 350 x 2 | 1 |
 |
11 | F20664 | Seal | 18 x 3 | 2 |
 |
12 | F23418 | Disc | Ø 8,5 x Ø 35 x 3 | 4 |
|
13 | F21260 | Spring lock washer | DIN127 B 8 | 4 |
|
14 | F20259 | Hexagonal nut | DIN934 M 8 | 4 |
|
15 | F20664 | Seal | 18 x 3 | 2 |
 |
16 | F28432 | Line filter 3.7kW | FFR-E540 - 15A-SF1-LL | 1 |
 |
17 | 106086 | Programmed FC | FR-E540 - 3.7K-EC | 1 |
 |
18 | F247515 | Servo converter | MDS 5075/L | 1 |
 |
19 | F252053 | Power cable servo drive | 5m orange with 1 connector | 1 |
 |
20 | F252054 | Control cable servo drive | 5m green with 2 plugs | 1 |
 |
21 | F29057 | Cable gland | M 25 x 1.5 | 6 |
 |
22 | F29060 | Hexagonal nut | M 25 x 1,5 | 6 |
 |
23 | F29058 | Cable gland | M 20 x 1.5 | 4 |
 |
24 | F25780 | Hexagonal nut | M 20 x 1,5 | 4 |
 |
25 | F26132 | Sealing ring | M 25 / 4 x 6 mm | 1 |
 |
26 | F27759 | Cable | ÖCYZ-J 4x1.5 mm² | 3.8 |
 |
27 | F148541 | Sticker | BMK02 | 1 |
 |
28 | F10131 | Sticker | flash | 1 |
 |
29 | 102242 | Clamping bracket | 4 - 13.5mm | 1 |
