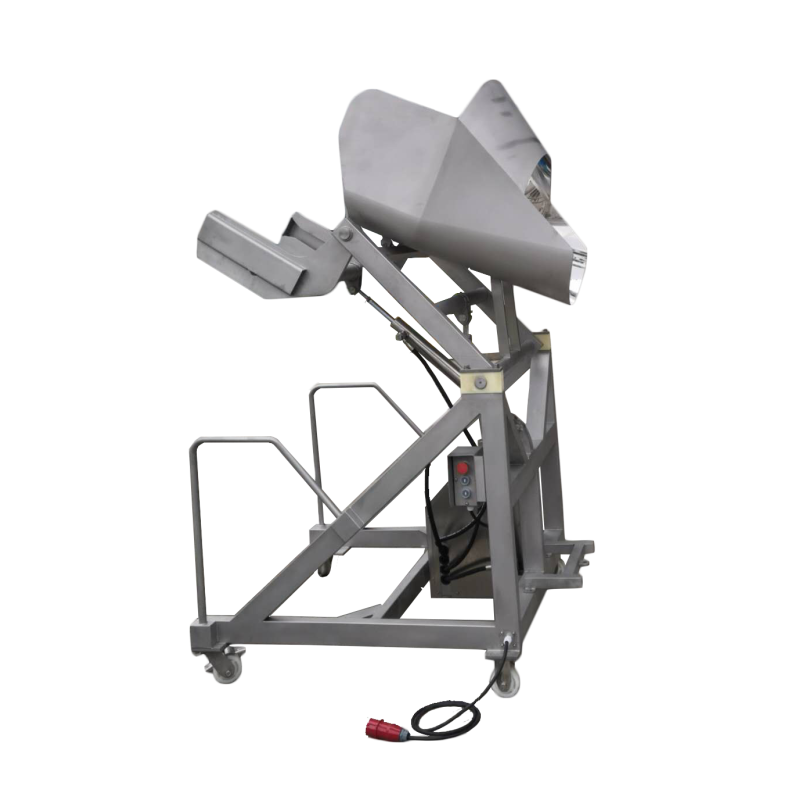

Industrial Meat Buggy Tipper Dumper

Industrial Meat Buggy Tipper Dumper

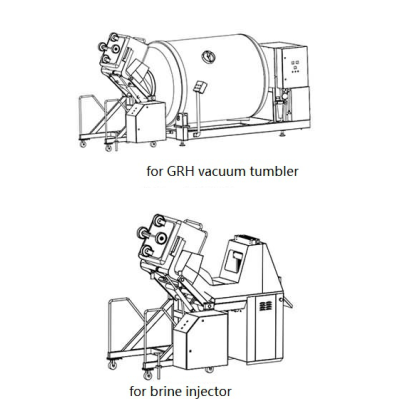

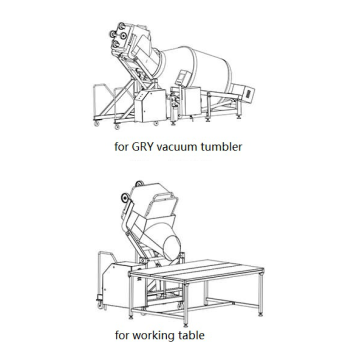

The Loading device is designed for the Vacuum tumbler for fast loading of the raw meat material with a marinate solution.

The loading device guarantees the efficiency of a loading process and avoid the unexpected drops of raw meat material and solution as much as possible.

Features:

• Machine is mostly made of stainless steel SUS304.
• The cylinder/s drum is made of stainless steel.
• The oil hoses are made of rubber.
• Control panel is sealed for waterproof for normal water drenching or spraying

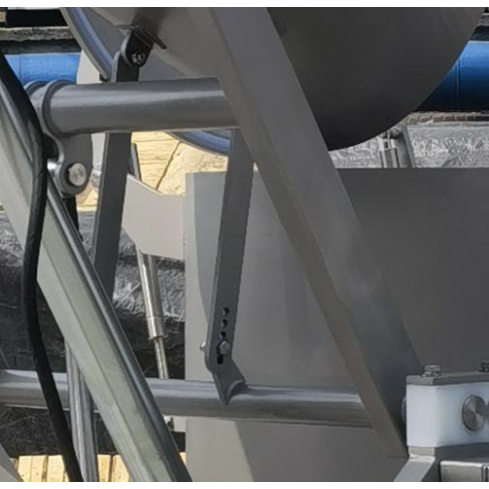

• Chute adjustment 100mm, height adjustment is limited by only adjusting the angle of chute.
• Little maintenance required; user needs to add hydraulic oil #46 into the hydraulic system when it arrives.
• Power 220v 60hz 3ph 7 Amp
• It is lifted by hydraulic power.
• Lifting capacity 551 lbs

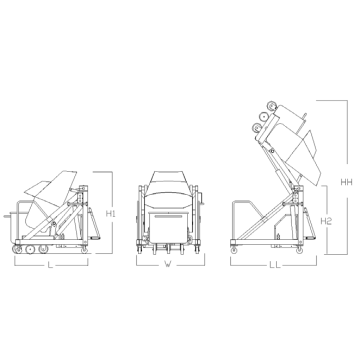

• Three models to select from; Dumping height (mm) 900mm, 1140mm, 1720mm
