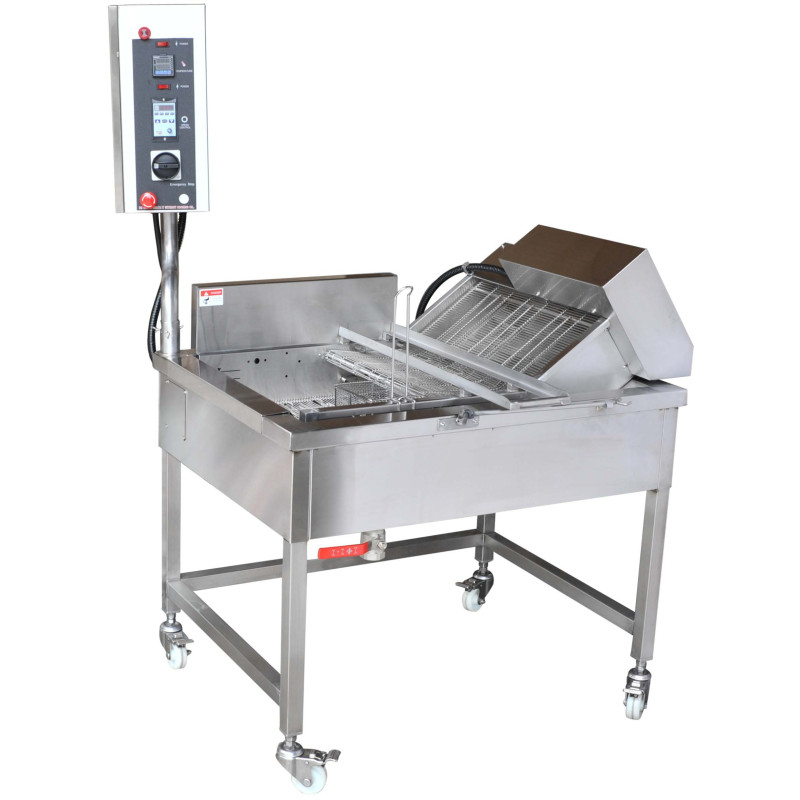

Industrial Continuous Belt Line Fryer CF-85W
Our Industrial Continuous Belt Line Fryers completes your production line for continuous cost saving production.
These inline fryers can be used with any kind of cooking oil except animal fat that solidifies.
Features:
- High quality and durable material 304 stainless steel
- Suitable for all kind of oils.
- Not recommended for animal fat or oils that can solidify example coconut oil.
- Comes standard with T- Shape conveyor belt.
- Electric temperature control-adjustable.
- Maximum temperature 350 ° C, recommended working temperature 200 ° C-250 ° C
- Stainless steel double conveyor.
- Distance between upper and lower belt is 12cm, can be customized according to customers product.
- Does not occupy much floor space.
- Less wear and tear parts, minimal parts, less breakdown.
- High quality components and parts.
- Easy cleanup and maintenance.
- Conveyor belt flips over for easy cleaning.
- With oil drain to easily drain out the oil, works well with Oil filter machine
- With Emergency Stop and other safety measures.
- Average waist working height.
- Ideal for all type of foods and snacks, great for products that float or submerge in oil.
- On casters with breaks.
- Certification: ESA
|
Model |
CF-85 |
CF-85W |
CF-89 |
CF-89W |
CF-90 |
CF-90W |
CF-91W |
|
Size in Inches (LxW): |
47 x 29 |
47 x 32 |
65 x 29 |
65 x 32 |
102 x 29 |
102 x 32 |
138 x 32 |
|
Conveyor Width: |
13 inches |
21 inches |
13 inches |
21 inches |
13inches |
21 inches |
21 inches |
|
Power: |
220V 60Hz 3Ph |
220V 60Hz 3Ph |
220V 60Hz 3Ph |
220V 60Hz 3Ph |
220V 60Hz 3Ph |
220V 60Hz 3Ph |
220V 60Hz 3Ph |
|
Oil Volume: |
36L |
54L |
72L |
90L |
126L |
162L |
216L |
|
Weight: |
150 lbs |
210 lbs |
188 lbs |
265 lbs |
331 lbs |
430 lbs |
496 lbs |
