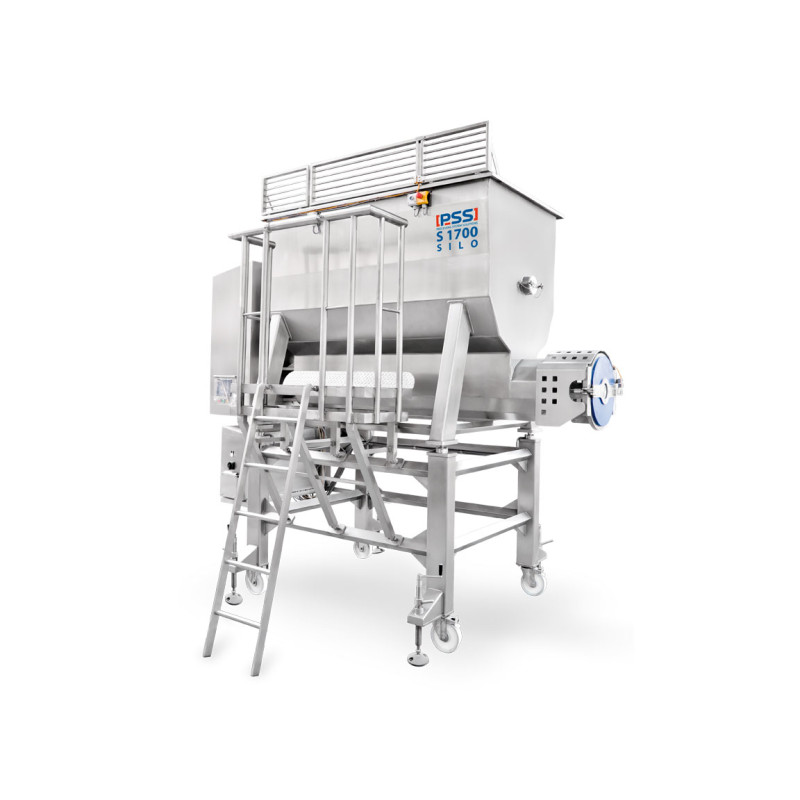

PSS Silos

Parameter

S 900

S 1200

S 1700

S 2200

S 2700

Total hopper volume

1 400 L

1 700 L

2 200 L

2 700 L

3 000 L

Net volume

900 L

1 200 L

1 700 L

2 200 L

2 700 L

Horizontal worm input

3 kW

3 kW

4 kW

4 kW

4 kW

Mixing section input

4 kW

4 kW

7,5 kW

7,5 kW

7,5 kW

Weight of the device

1 630 kg

1 820 kg

2 125 kg

2 275 kg

2 475 kg

Dimensions (LxWxH)

3000 mm x 2605 mm x 2800 mm

3000 mm x 2605 mm x 3225 mm

3430 mm x 2605 mm x 3225 mm

3830 mm x 2605 mm x 3225 mm

3830 mm x 2925 mm x 3225 mm

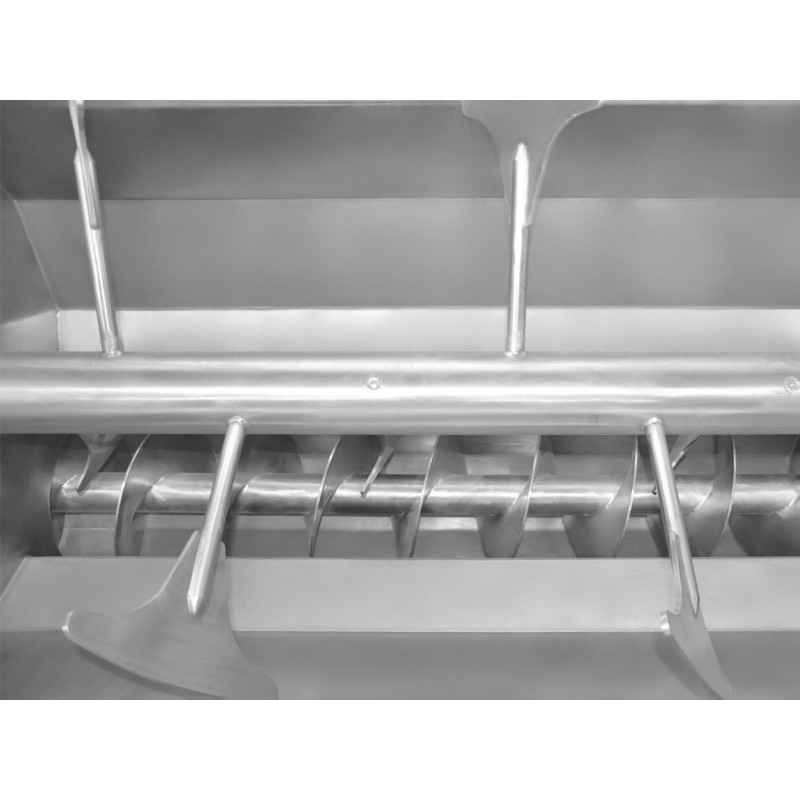

Worms’ diameter

400 mm

400 mm

400 mm

400 mm

400 mm

Voltage network

3/PE/N 50Hz 230/400V TN-C-S

3/PE/N 50Hz 230/400V TN-C-S

3/PE/N 50Hz 230/400V TN-C-S

3/PE/N 50Hz 230/400V TN-C-S

3/PE/N 50Hz 230/400V TN-C-S

Standardized AC voltage

230/400 V ± 10%

230/400 V ± 10%

230/400 V ± 10%

230/400 V ± 10%

230/400 V ± 10%

Control voltage

230/24 V AC

230/24 V AC

230/24 V AC

230/24 V AC

230/24 V AC
