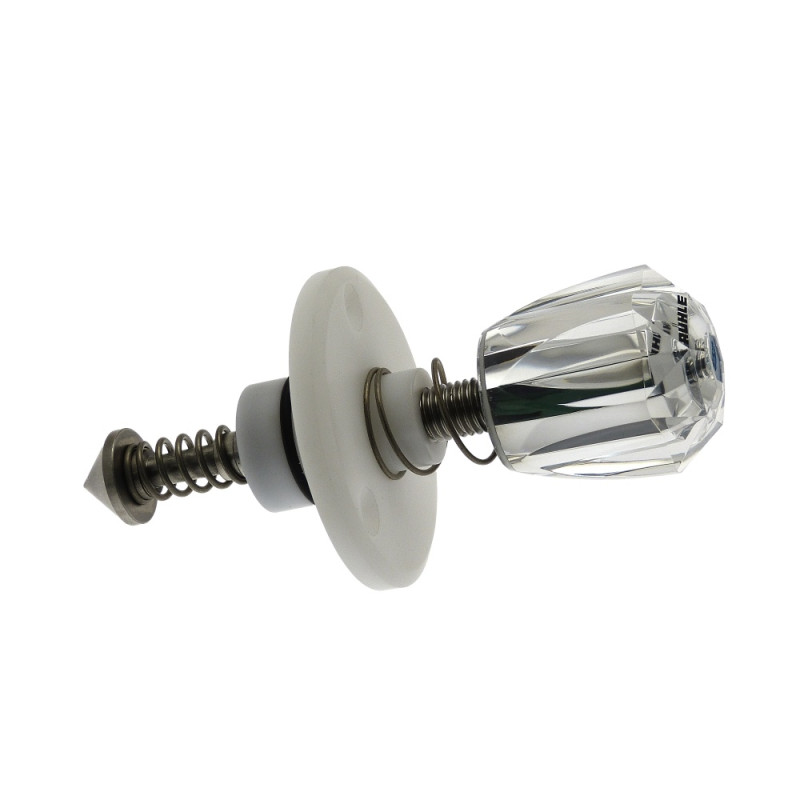

Mengenventil Exploded View Ruhle PR8 No. 2383 and Higher

Type: F40024
Ships from: FOB Brampton Canada
U/M: Each
Stock: On Order
CM Product Code: 1892
* Mengenventil Exploded View PR 8 No 2383 and higher:

Mengenventil Exploded View for Ruhle PR8 Injector No. 2383 and Higher

  Pos No. Part No. Description Add Info Required
F41722 1 F41722 Grohe adjusting valve PR 8 - 20 1
F22560 2 F22560 Pressure Spring Ø 1,5 x De28 x 50 1
F20047 3 F20047 Hexagonal Nut DIN439 M 10 2
F20145 4 F20145 Flange Ø 80 x 45 1
F29317 5 F29317 O-ring Ø 24 x 3 1
F22570 6 F22570 Radial shaft seal Ø 14 x Ø 26 x 7 1
F20142 7 F20142 Shaft Ø 17 x 102 1
F20144 8 F20144 Pressure Spring Ø 1,8 x De16 x 35 1
F20140 9 F20140   Ø 25 x 65 1
