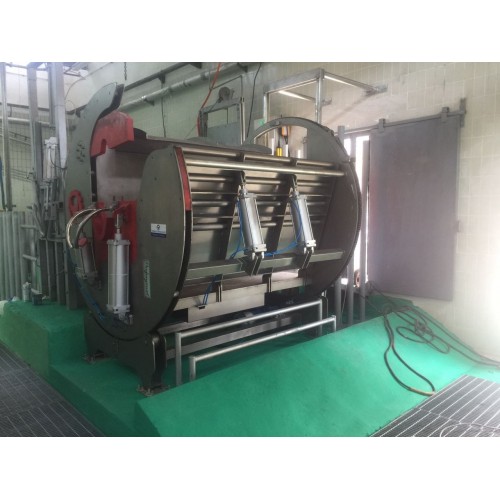

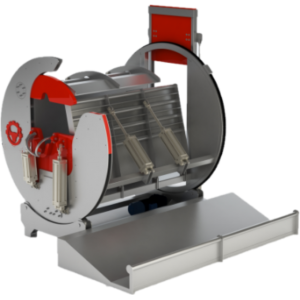

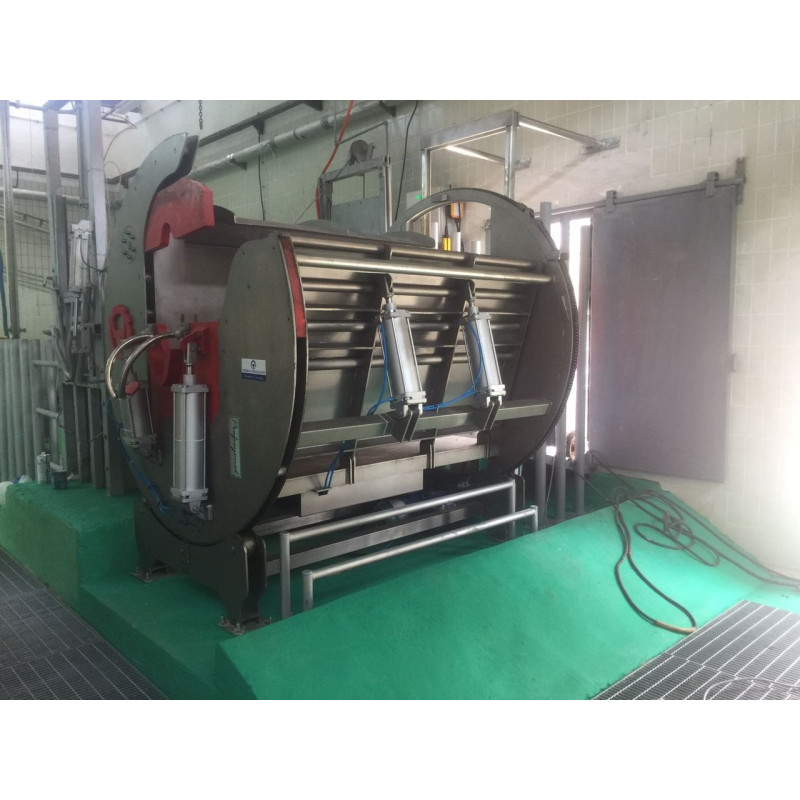

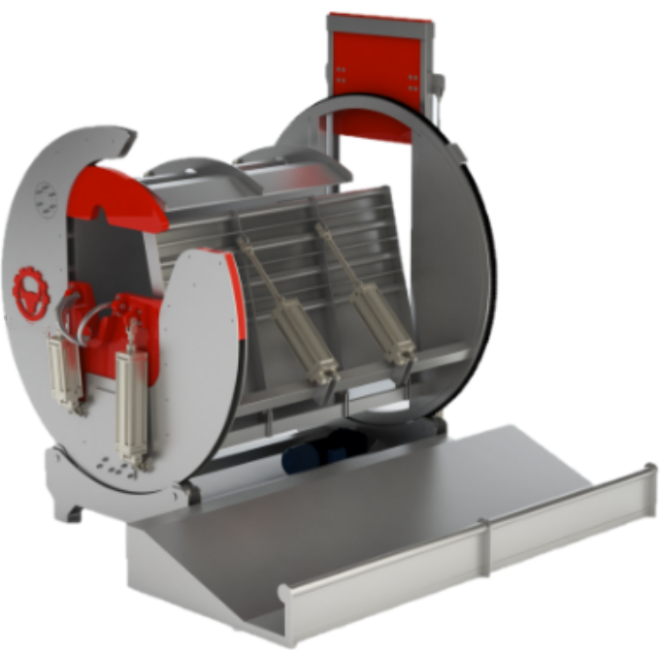

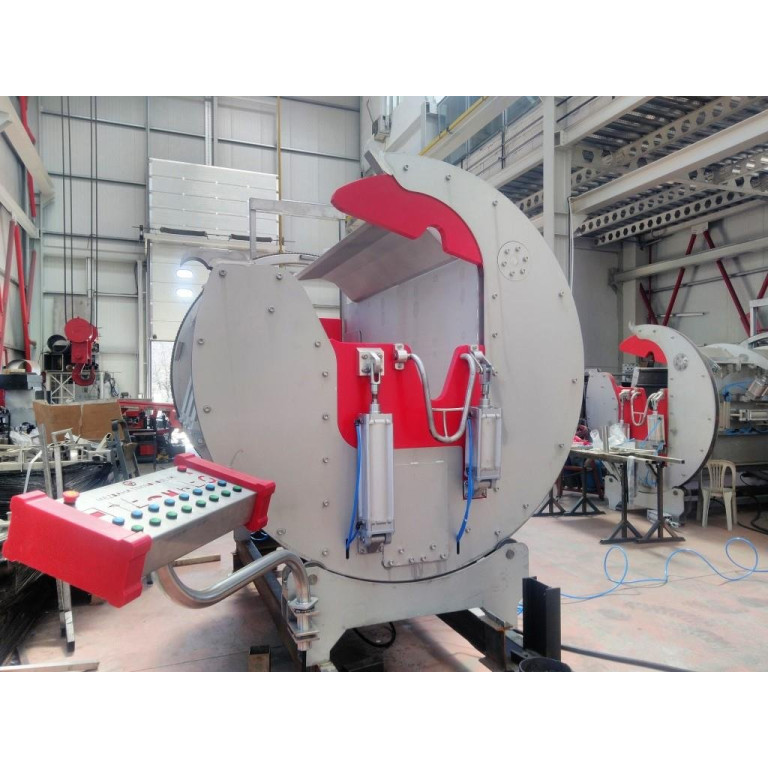

Rotational Cattle Killing Box

Rotary Cattle Slaughter Box

Animals for ritual slaughtering are completely immobilized by this machine.

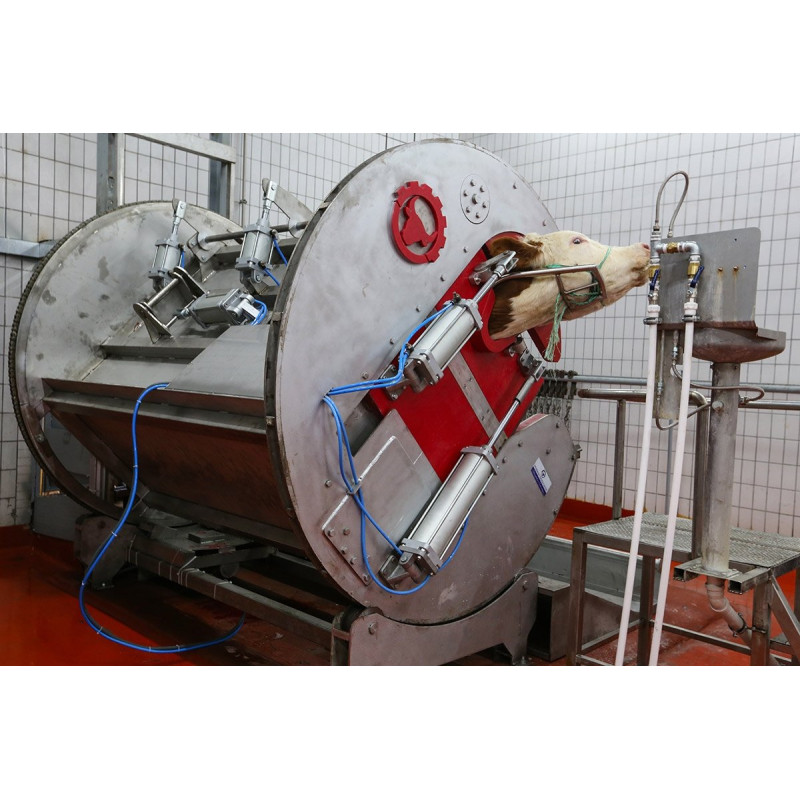

The locked animal is rotated 100 degrees with the box during the ritual slaughter.

Pressure on the side walls ensures the effective fixation of animals of various sizes.

According to Muslim rites, machine has been designed for achieving maximum good access to the cattle throat.

After thorough bleeding animal falls down to the cradle.

The box chamber has very strong and durable construction.

Features:

• Complete stainless-steel material
• 180-degree rotational movement feature
• The machine will work with 8 bar air pressure.
• It prevents the animal from struggling by clamping.
• For an easy animal throttle process, there is a pneumatic mechanism which moves the head of the animal upward.
• This mechanism is completely produced by stainless steel and polyamide.
• Capacity: 60 head/hour
• Drive: Electric - Pneumatic
• Motor Power: 4000 W
• Overall Dimensions: 2600x2300x2100 mm
• Weight: 2600 kg
• Rotation angle: 270 degrees
• Accessories: - 5 pneumatic piston, - 1 coupled engine-reducer, - remote controlled button, - transformer, - control panel rotational ritual trap.

This machine will be shipping in 3 packages, Dimensions of each box are as follows,

215x270x245cm, Weight 989.56kg, 100x15x200cm, Weight 20.87kg , 300x130x36cm, 989.56kg
