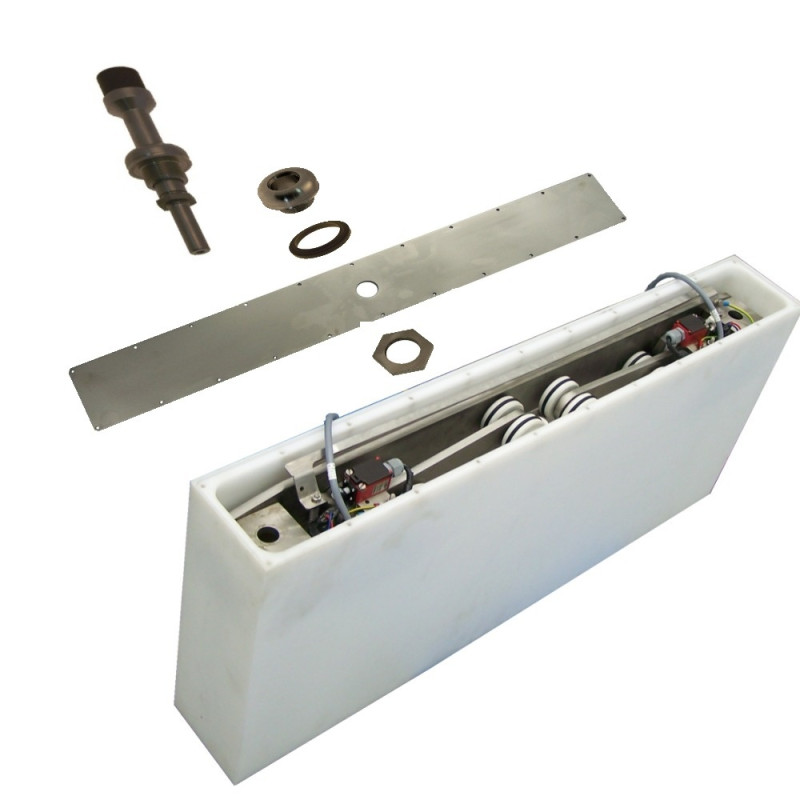

Block Complete Ruhle Injector IR112
| Pos No. | Part No. | Description | Add Info | Required | |
 |
1 | F250267 | Block | 956 x 424 x 140 | 1 |
 |
2 | F29102 | Threaded insert | M 6 x M10x1,5 x 14 | 112 |
 |
3 | F450276 | Cover | IR 112 | 1 |
 |
4 | F24031 | Spring lock washer | DIN127 B 6 | 49 |
 |
5 | F26033 | Hexagonal bolt | DIN933 M 6 x 20 | 49 |
 |
6 | F29304 | Flange | Ø 17,2 x Ø 65 x 52 | 1 |
 |
7 | F20258 | Washer | DIN125 A 6,4 | 4 |
 |
8 | F20203 | Hexagonal nut | DIN934 M 6 | 4 |
 |
9 | F22369 | Pressure spring | 2.0 x 19 x 350 | 112 |
 |
10 | F29306 | Bolt | Ø 19,5 x 25 | 111 |
 |
11 | F251523 | Bolt | Ø 19,5 x 25 | 1 |
 |
12 | F250269 | Plate / Sheet | 685,6 x 99,6 x 4 | 1 |
 |
13 | F20264 | Countersunk bolt | DIN963 M 6 x 16 | 56 |
 |
14 | 104573 | Switch unit | IR 112 | 1 |
 |
15 | 104574 | Switch unit | IR 112 | 1 |
 |
16 | F450721 | Bracket | IR 112 | 1 |
 |
17 | F450720 | Bracket | IR 112 | 1 |
 |
18 | F21035 | Disc | Ø 6,5 x Ø 20 x 2 | 6 |
 |
19 | F24031 | Spring lock washer | DIN127 B 6 | 8 |
 |
20 | F24522 | Hexagonal bolt | DIN933 M 6 x 25 | 8 |
 |
21 | F252505 | Plate / Sheet | 756 x 56,5 x 29 x 2,5 | 1 |
|
22 | F20258 | Washer | DIN125 A 6,4 | 2 |
|
23 | F20203 | Hexagonal nut | DIN934 M 6 | 2 |
 |
24 | 104575 | Plate - pulse generator | IR 112 | 1 |
 |
25 | F450425 | Cover | IR 112 | 1 |
 |
26 | F29101 | Raised countersunk head screw | DIN95 M 6 x 25 conical | 22 |
