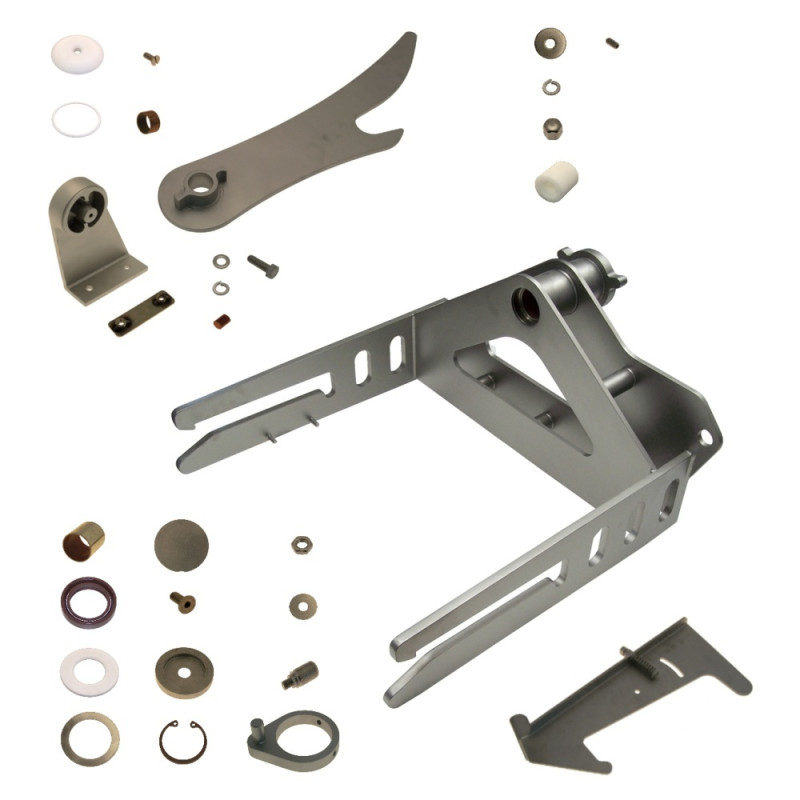

Cabin Complete for Meat Dicer SR3 with no. 70 and higher
| Pos No. | Part No. | Description | Add Info | Required | |
 |
1 | F41921 | Cabin | SR 3 | 1 |
 |
2 | F244755 | Slide bearing | DIN1850 - J60 x 65 x 70 | 2 |
 |
3 | F25062 | Radial shaft seal | Ø 60 x Ø 80 x 7 | 1 |
 |
4 | F28646 | Ring | Ø 60,2 x Ø 114 x 5 | 1 |
 |
5 | F26787 | Ring | Ø 50,2 x Ø 70 x 4 | 1 |
 |
6 | F21717 | Locking ring | DIN471 Ø 50 x 2 | 1 |
 |
7 | F28652 | Disc | Ø 13 x Ø 70 x 8 | 1 |
 |
8 | F20835 | Countersunk bolt | DIN7991 M10 x 25 | 1 |
 |
9 | F26788 | Lid | Ø 71,8 x 5 | 1 |
 |
10 | F444857 | Stop | SR 3 | 1 |
 |
11 | F28659 | bolt | Ø 40 x 90 | 1 |
 |
12 | F26798 | Disc | Ø 20,5 x Ø 60 x 5 | 1 |
 |
13 | F26720 | Hexagonal nut | DIN917 M 20 | 1 |
 |
14 | F445221 | locking device | SR 3 | 1 |
 |
15 | F22907 | Disc | Ø 10,5 x Ø 35 x 3 | 2 |
 |
16 | F20811 | Cap nut | DIN917 M 10 | 2 |
 |
17 | F26789 | Shaft | Ø 50 x 57 | 2 |
 |
18 | 104751 | Tilting device | SR 3 | 1 |
 |
19 | F20881 | Threaded pin | DIN914 M 10 x 20 | 2 |
 |
20 | F245668 | ring | Ø 10,5 x Ø 27 x 3 | 2 |
