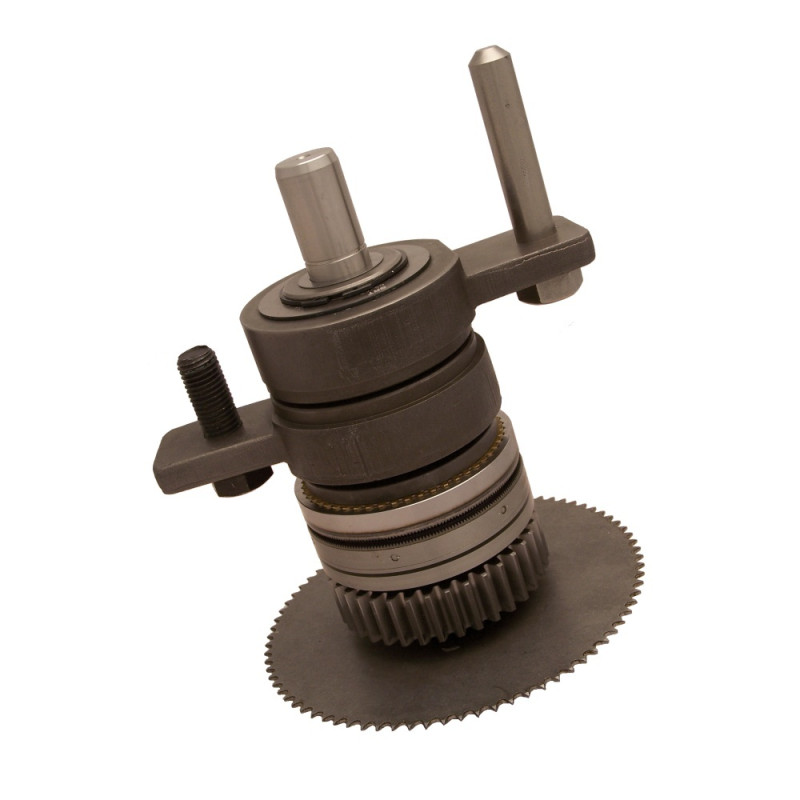

Forward feed shaft - clutch Complete for SR1 Turbo Dicer
| Pos No. | Part No. | Description | Add Info | Required | |
 |
1 | F26337 | Flange | Ø 108 x 23,5 | 1 |
 |
2 | F20562 | Tapered ball bearing | DIN628 - 3205 | 1 |
 |
3 | F20551 | Spacers | Ø 31 x Ø 50 x 14,4 | 1 |
 |
4 | F41419 | Chain wheel | SR 1 / SR 1 Turbo | 1 |
 |
5 | F20550 | Sprocket wheel | Z 36 m 3 | 1 |
 |
6 | F41548 | Free wheel cpl. | SR 1 | 1 |
 |
7 | F41578 | Toothed clutch magnet. | SR 1 / SR 1 Turbo | 1 |
 |
8 | F20547 | Shaft | Ø 30 x 270 | 1 |
 |
9 | F20561 | Spring key | A 8 x 7 x 70 | 2 |
 |
10 | F22860 | Disc | Ø 30 x Ø 42 x 0,1 | 8 |
|
11 | F22860a | Disc | Ø 30 x Ø 42 x 0,25 | 4 |
|
12 | F22860b | Disc | Ø 30 x Ø 42 x 0,5 | 1 |
 |
13 | F20217 | Locking ring | DIN471 Ø 30 x 1,5 | 1 |
 |
14 | F22138 | Hexagonal bolt | DIN933 M10 x 25 | 2 |
 |
15 | F27693 | Washer | DIN125 A 10,5 | 2 |
