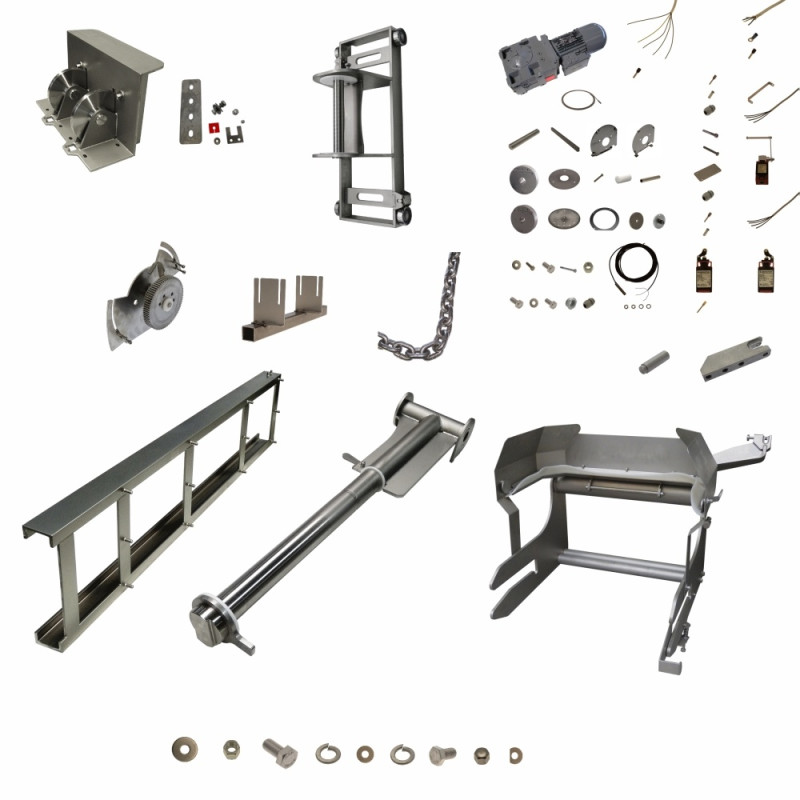

Hebesystem Assembly
| Pos. No. | Part No. | Description | Add. Info | Required | |||
|---|---|---|---|---|---|---|---|
 |
1 | 110721 | Führung | MPR 500 | 1 | ||
 |
2 | 110319 | Umlenkung | MGR 900 / MPR 500 | 1 | ||
 |
3 | 106880 | Wagen | MGR 900 | 1 | ||
 |
4 | 106866 | Aufnahme | MGR 900 | 1 | ||
 |
5 | 106976 | Schütte | MGR/MPR 500/900 | 1 | ||
 |
6 | 111764 | Aufnahme | 40 x 30 x 152 | 1 | ||
 |
7 | 111766 | Bolzen | Ø 12 x 40 | 1 | ||
 |
8 | 106888et | Antrieb | MGR 900/1500 MGR 500 | 1 | ||
 |
9 | 111013 | Aufnahme | MPR 500 | 1 | ||
 |
10 | 106989 | Halter | MGR 900 | 1 | ||
 |
11 | F24901 | Scheibe | Ø 12,5 x Ø 35 x 3 | 12 | ||
 |
12 | F20204 | Sechskantmutter | DIN934 M 12 | 12 | ||
 |
14 | F21281 | Sechskantschraube | DIN933 M 8 x 16 | 2 | ||
 |
15 | F21260 | Federring | DIN128 A 8 | 2 | ||
 |
16 | 107641 | Scheibe | Ø 14,5 x 35 x 4 | 2 | ||
 |
17 | F22918 | Federring | DIN127 B 14 | 3 | ||
 |
18 | F25285 | Sechskantschraube | DIN933 M 14 x 25 | 3 | ||
 |
19 | 110096 | Rundstahlkette | 8 x 24 | 1 | ||
 |
20 | F20134 | Hutmutter | DIN917 M 8 | 2 | ||
 |
21 | 111065 | Scheibe | Ø 14,5 x 35 x 4 | 1 |
