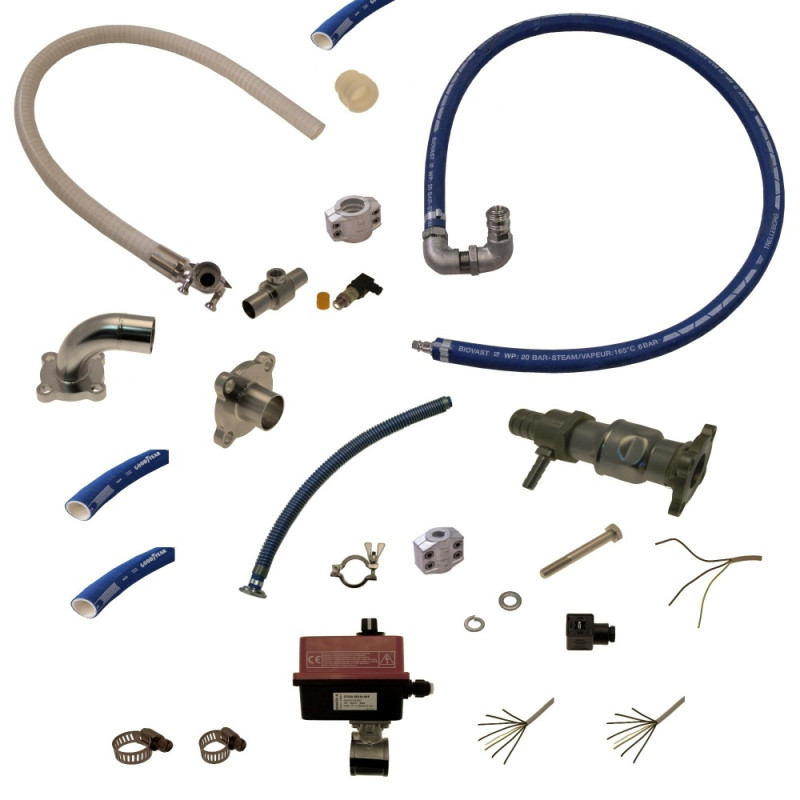

Hose Laying Assembly IR56 No. 473 and Higher
| Pos No. | Part No. | Description | Add Info | Required | |
 |
1 | 105798 | Connector | IR 56 | 1 |
 |
2 | 105818 | Mixer valve | IR 28/56 | 2 |
 |
3 | 106078 | Connector | IR 28/56 | 1 |
 |
4 | 105796 | Connector | IR 28/56 | 1 |
 |
5 | F27693 | Washer | DIN125 A 10,5 | 8 |
 |
6 | F26379 | Spring lock washer | DIN127 B 10 | 8 |
 |
7 | 105580 | Hexagonal bolt | DIN931 M10 x 80 | 8 |
 |
8 | F21323 | Hose clamp | HAS 10 Ø 14-27 | 1 |
|
9 | F24598 | Hose clamp | HAS 24 Ø 27-51 | 3 |
 |
10 | F10192 | Hose | NW 13 x 23 x 5 Wdg. | 0.5 m |
|
11 | F10088 | Hose | Ø 32 x 5,5 NW 32 | |
 |
12 | F29114 | Clamp light | DIN25-40/1-1/2" | |
 |
13 | F452808 | Clamp cup set | DN 13 Alu | |
 |
14 | 105985 | Hose | IR 56 | |
 |
15 | 105943 | Hose | IR 56 | |
 |
16 | F440906 | Hose | IR 28/56 | 1 |
 |
17 | F25303 | Cable | ÖZ-J 7x1.0 mm² | 3.7 m |
 |
18 | F23343 | Cable | ÖZ-J 3 x 1.0 mm² | 2.8 m |
|
19 | F25303 | Cable | ÖZ-J 7x1.0 mm² | 3.7 m |
 |
20 | F23309 | Socket | GDM 3011 | 1 |
 |
21 | F29110 | Seal | Ø 32 x Ø 52,5 x 6,5 | 1 |
