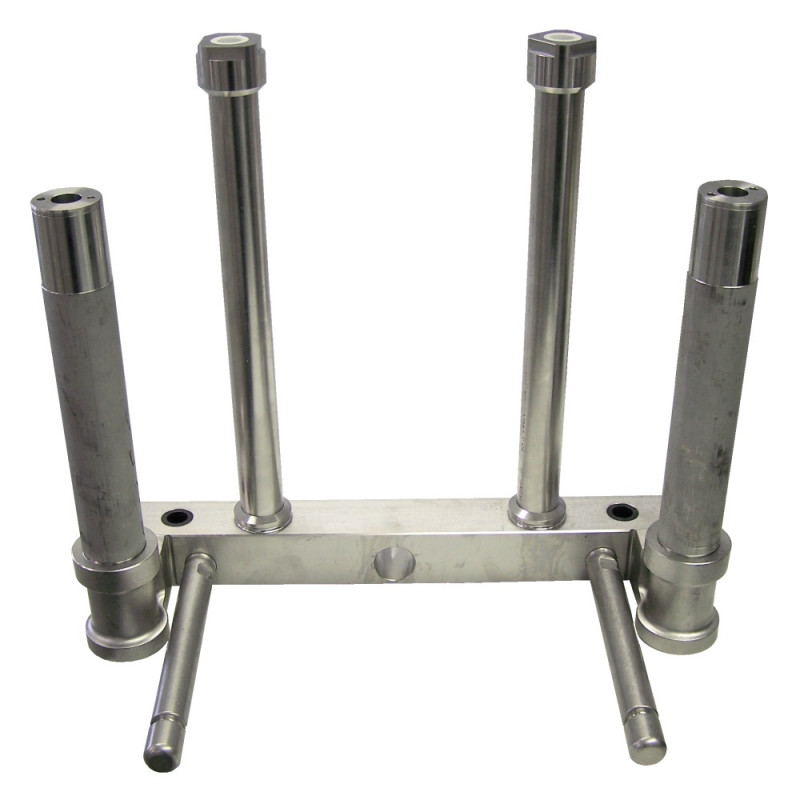

Housing Exploded View Ruhle IR56 No.473 and Higher
| Pos No. | Part No. | Description | Add Info | Required | |
 |
1 | 105682 | Traverse | 60 x 60 x 560 | 1 |
 |
2 | F28447 | Cylindrical pin | ISO2338 - Ø 8 m6 x 20 | 4 |
 |
3 | F245075 | Shaft | Ø 30 x 283 | 2 |
 |
4 | F245052 | Housing | 75 x 100 x 111 | 2 |
 |
5 | F21087 | Cylinder head screw | DIN912 M10 x 60 | 8 |
 |
6 | F29276 | bushing | Ø 25,5 x Ø 37,6 x 47,2 | 2 |
 |
7 | F245071 | Nut | M 40 x 1,5 x Ø 55 x 17 | 2 |
 |
8 | F29275 | Guide | Ø 40 x 4 coil x 480 | 2 |
 |
9 | F240200 | Ring | Ø 20,5 x Ø 30 x 10 | 2 |
 |
10 | F29278 | Pressure spring | d 3.5 x De 28 x Lk 480 | 2 |
 |
11 | F29277 | bushing | Ø 20,5 x Ø 37,6 x 65 | 2 |
 |
12 | F240152 | Nut | Ø 30 x Ø 55 x 40 | 2 |
 |
13 | F245074 | Tube | Ø 55 x 5 x 335,5 | 2 |
 |
14 | F240148 | Flange | M48 x 1,5 x Ø 53,8 x 25 | 2 |
 |
15 | F245076 | Disc | Ø 18 x 4 | 8 |
 |
16 | 105571 | Slide bearing | PFM-2023-30 | 2 |
 |
17 | F29145 | Slide bearing | JUM-02-40 | 2 |
 |
18 | F29213 | Take-up ring | Ø 42 x Ø 60 x 10 | 2 |
 |
19 | F29195 | Grooved ring | 40 x 50 x 7.3 V142 | 2 |
 |
20 | F243724 | Nut | M 62 x 1,5 x Ø 42 x 6 | 2 |
