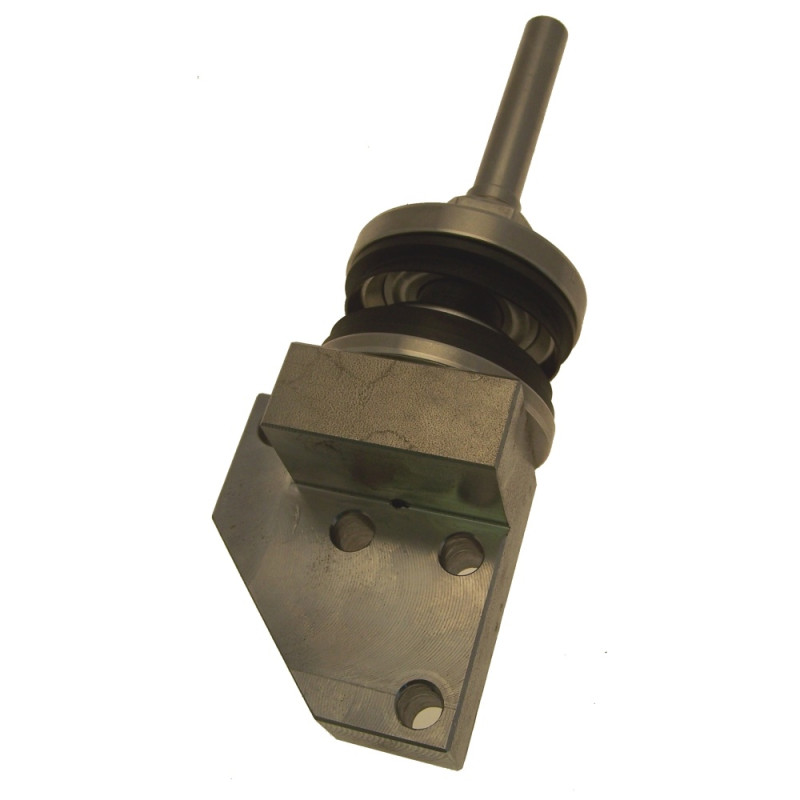

Lever Exploded View for Ruhle SR2 Meat Dicer No. 249 and Higher
| Pos No. | Part No. | Description | Add Info | Required | |
 |
1 | F26890 | Bracket | 85 x 80 x 60 | 1 |
 |
2 | F26891 | Shaft | Ø 30 x 170 | 1 |
 |
3 | F27441 | Housing | Ø 22 x Ø 70 x 11 | 1 |
 |
4 | F27442 | Sealing ring | Ø 54 x Ø 64 x 5,5 | 2 |
 |
5 | F16892 | Axial Grooved Ball Bearing | DIN711 51205 | 1 |
 |
6 | F26896 | Housing | Ø 22 x Ø 70 x 15 | 1 |
 |
7 | F26897 | Hexagonal nut | DIN439 M 20 x 1,5 | 2 |
 |
8 | F25069 | Axial Grooved Ball Bearing | DIN711 51106 | 1 |
