-90x90.jpg "Hebesystem Assembly - MGR 400 No. 8 and higher")

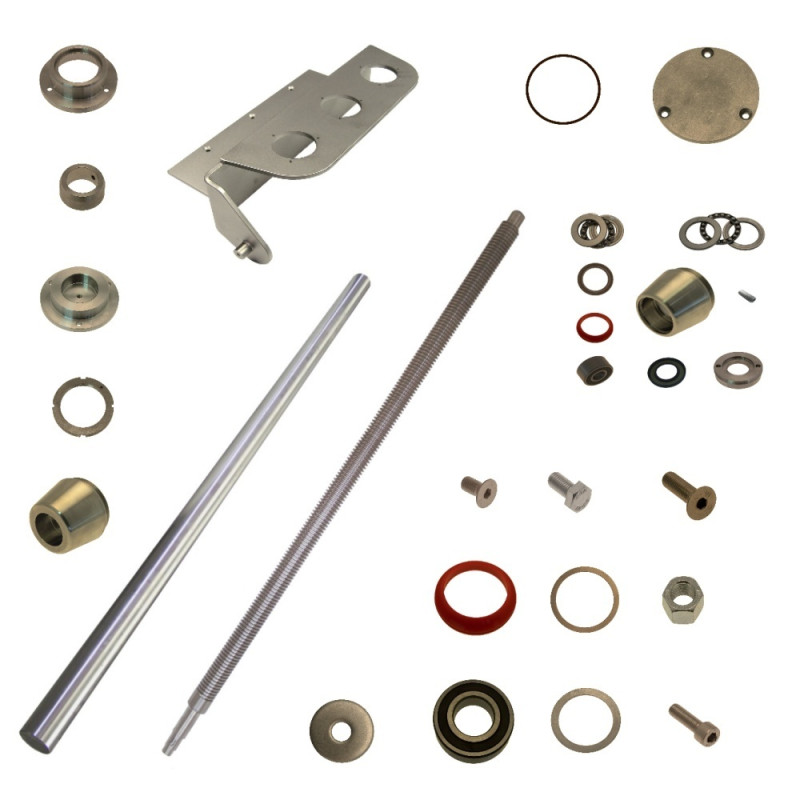

Lift Exploded View Ruhle MGR400 No. 8 and Higher
| Pos No. | Part No. | Description | Add Info | Required | |
 |
1 | 107633 | Housing | Ø 100 x 81 | 2 |
 |
2 | 107189 | Flange | MGR 400/900/1500 | 1 |
 |
3 | 107940 | Machine construction component | Ø 50 x 1545,5 | 2 |
 |
4 | 107830 | trapezoidal spindle | TR 50 x 8 x 1648 | 1 |
 |
5 | 107599 | Nut | M 90 x 1,5 x Ø 120 x 8 | 3 |
 |
6 | 107629 | Housing | Ø 110 x 30 | 2 |
 |
7 | 107628 | Flange | Ø 110 x 36 | 1 |
 |
8 | 107627 | Ring | Ø 35 x Ø 50 x 19 | 1 |
 |
9 | F23506 | O-Ring | Ø 74 x 3 | 1 |
 |
10 | 107471 | Disc | Ø 104 x 6 | 1 |
 |
11 | F20453 | Countersunk bolt | DIN7991 M 6 x 20 | 9 |
 |
12 | F26033 | Hexagonal bolt | DIN933 M 6 x 20 | 2 |
 |
13 | 108448 | MGR 400 | 1 | |
 |
14 | F24205 | Countersunk bolt | DIN7991 M10 x 35 | 6 |
 |
15 | F20147 | Hexagonal nut | DIN934 M 10 | 6 |
 |
16 | 107152 | Scraper | Ø 49,5 x Ø 66 x 14 | 1 |
 |
17 | 107161 | Grooved ball bearing | 6207 - 2RS | 1 |
 |
18 | F26813 | Disc | Ø 55 x Ø 71 x 2 | 2 |
 |
19 | F22068 | Cylinder head screw | DIN912 M 6 x 12 | 2 |
 |
20 | F22907 | Disc | Ø 10,5 x Ø 35 x 3 | 6 |
 |
21 | F25432 | Threaded pin | DIN914 M 6 x 10 | 1 |
