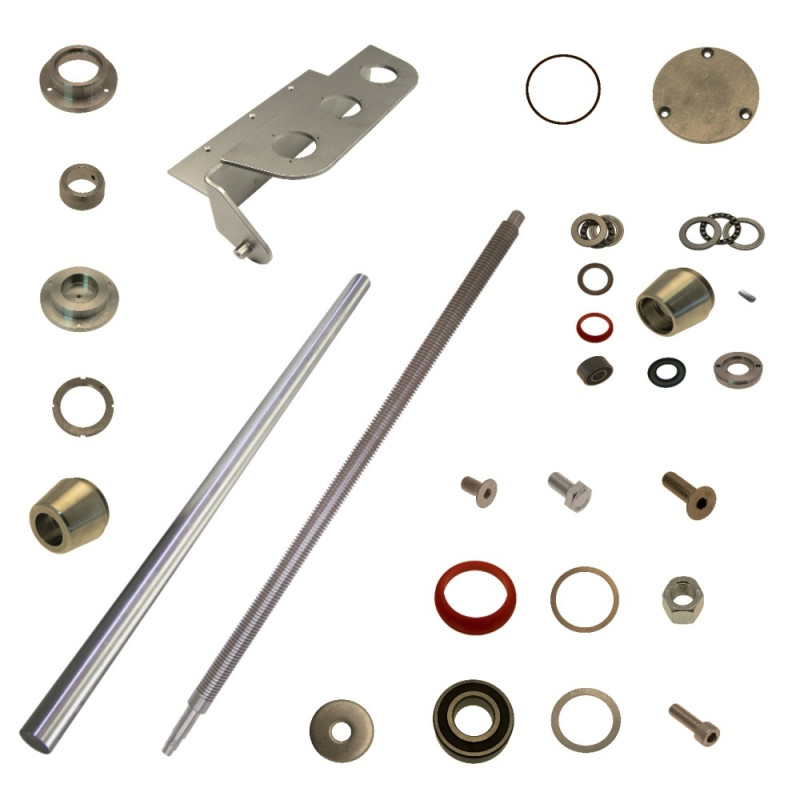

Lift Exploded View - MGR 400 No. 1 and higher

Lift Exploded View - MGR 400 No. 1 and higher
Lift Exploded View - MGR 400 No. 1 and higher
Lift Exploded View     Pos. No. Part No.  Description  Add. Info ... Read More
  • Stock: On order
  • Brand: Ruhle
  • Type: 107996

Available Options

Request Quote
Abdeckung Exploded View No. 1 and Higher
Quickview
Abdeckung Exploded View No. 1 and Higher
View Details Request Quotes
Aufnahme Exploded View No. 1 and Higher
Quickview
Aufnahme Exploded View No. 1 and Higher
View Details Request Quotes
Drive Lifting Aid Complete No. 1 and Higher
Quickview
Drive Lifting Aid Complete No. 1 and Higher
View Details Request Quotes
Flansch Exploded View - MGR 400 No. 1 and higher
Quickview
Flansch Exploded View - MGR 400 No. 1 and higher
View Details Request Quotes
Fuhrung Complete - MGR 400 No. 1 and higher
Quickview
Fuhrung Complete - MGR 400 No. 1 and higher
View Details Request Quotes
Hebeeinheit Complete - MGR 400 No. 1 and higher
Quickview
Hebeeinheit Complete - MGR 400 No. 1 and higher
View Details Request Quotes
Hebel Complete - MGR 400 No. 1 and higher
Quickview
Hebel Complete - MGR 400 No. 1 and higher
View Details Request Quotes
Hebesystem Assembly - MGR 400 No. 1 and higher
Quickview
Hebesystem Assembly - MGR 400 No. 1 and higher
View Details Request Quotes

Lift Exploded View

    Pos. No. Part No.  Description  Add. Info  Required
  107633 1 107633 Aufnahme Ø 100 x 81 2
  107189 2 107189 Flansch MGR 400/900/1500 1
  107940 3 107940 Welle Ø 50 x 1545,5 2
  107830 4 107830 Trapezspindel TR 50 x 8 x 1648 1
  107599 5 107599 Mutter M 90 x 1,5 x Ø 120 x 8 3
  107629 6 107629 Aufnahme Ø 110 x 30 2
  107628 7 107628 Flansch Ø 110 x 36 1
  107627 8 107627 Ring Ø 35 x Ø 50 x 19 1
  F23506 9 F23506 O-Ring Ø 74 x 3 1
  107471 10 107471 Scheibe Ø 104 x 6 1
  F20453 11 F20453 Senkschraube DIN7991 M 6 x 20 9
  F26033 12 F26033 Sechskantschraube DIN933 M 6 x 20 2
  108448 13 108448 Aufnahme MGR 400 1
  F24205 14 F24205 Senkschraube DIN7991 M10 x 35 6
  F20147 15 F20147 Sechskantmutter DIN934 M 10 6
  107152 16 107152 Abstreifer Ø 49,5 x Ø 66 x 14 1
  107161 17 107161 Rillenkugellager 6207 - 2RS 1
  F26813 18 F26813 Scheibe Ø 55 x Ø 71 x 2 2
  F22068 19 F22068 Zylinderschraube DIN912 M 6 x 12 2
  F22907 20 F22907 Scheibe Ø 10,5 x Ø 35 x 3 6
  F25432 21 F25432 Gewindestift DIN914 M 6 x 10 1
