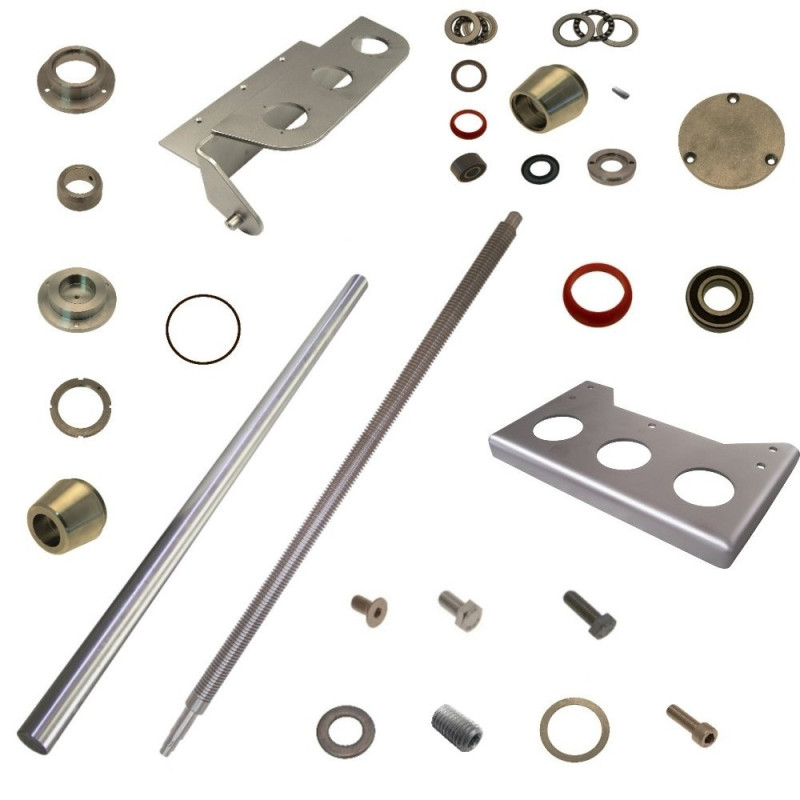

Lift Exploded View
| Pos. No. | Part No. | Description | Add. Info | Required | ||
|---|---|---|---|---|---|---|
 |
1 | 108364 | Aufnahme | 510 x 274 x 78 | 1 | |
 |
2 | 107189 | Flansch | MGR 400/900/1500 | 1 | |
 |
3 | 107633 | Aufnahme | Ø 100 x 81 | 2 | |
 |
4 | 107599 | Mutter | M 90 x 1,5 x Ø 120 x 8 | 3 | |
 |
5 | 107991 | Welle | Ø 50 x 1848 | 2 | |
 |
6 | 108023 | Trapezspindel | TR 50 x 8 x 1965 | 1 | |
 |
7 | 107629 | Aufnahme | Ø 110 x 30 | 2 | |
 |
8 | 107471 | Scheibe | Ø 104 x 6 | 1 | |
 |
9 | 107628 | Flansch | Ø 110 x 36 | 1 | |
 |
10 | 107627 | Ring | Ø 35 x Ø 50 x 19 | 1 | |
 |
11 | F20033 | Scheibe | Ø 20 x Ø 35 x 3 | 5 | |
 |
12 | F20453 | Senkschraube | DIN7991 M 6 x 20 | 9 | |
 |
13 | F26033 | Sechskantschraube | DIN933 M 6 x 20 | 2 | |
 |
14 | 107161 | Rillenkugellager | 6207 - 2RS | 1 | |
 |
15 | 107639 | Scheibe | Ø 55 x Ø 71 x 4 | 1 | |
 |
16 | F23506 | O-Ring | Ø 74 x 3 | 1 | |
 |
17 | 107152 | Abstreifer | Ø 49,5 x Ø 66 x 14 | 1 | |
 |
18 | F20640 | Gewindestift | DIN916 M 5 x 8 | 1 | |
 |
19 | F22068 | Zylinderschraube | DIN912 M 6 x 12 | 3 | |
 |
20 | 108634 | Aufnahme | MGR 900 | 1 | |
 |
21 | 108347 | Sechskantschraube | DIN933 M12 x 35 | 5 |
