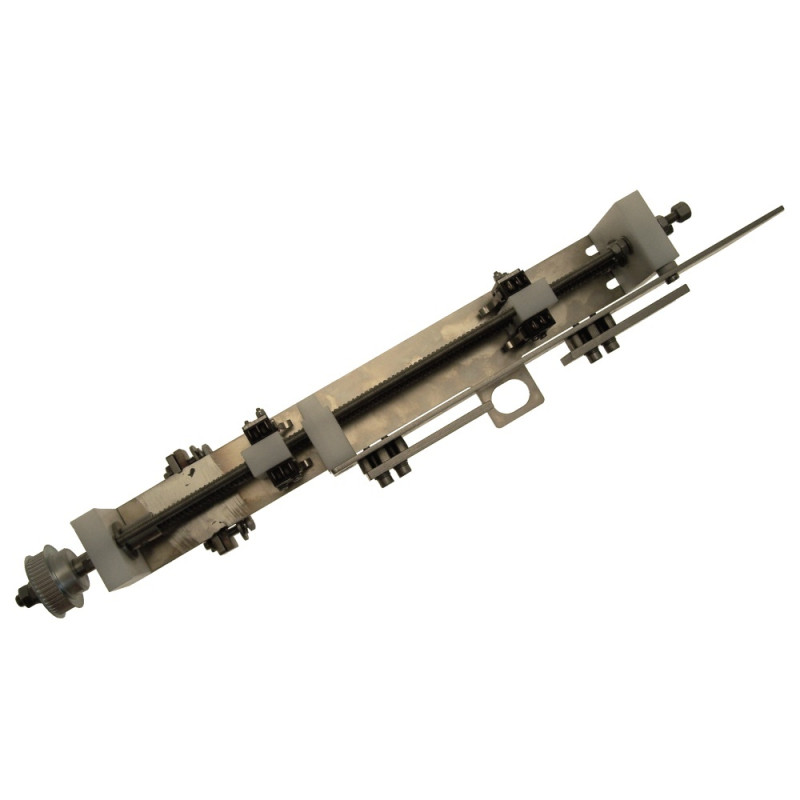

Schaltautomat Exploded View

Pos. No.	Part No.	Description	Add. Info	Required
1	107482	Aufnahme	MGR 400/900/1500	1
2	107484	Aufnahme	MGR 400/900/1500	1
3	F248845	Disc	Ø 6,5 x Ø 18 x 2	3
4	F24031	Spring lock washer	DIN127 B 6	2
5	F21385	Hexagonal bolt	DIN933 M 6 x 30	2
6	107476	Aufnahme	45 x 16 x 52	1
7	F21045	Washer	DIN125 A 5,3	8
8	F20260	Spring lock washer	DIN127 B 5	8
9	F22173	Zylinderschraube	DIN912 M 5 x 25	4
10	F29231	Gleitlager	DIN1850 - J12 x 14 x 12	1
11	F20570	U-Scheibe	DIN125 A 4,3	2
12	107285	Gewindestange	M 6 x 400	2
13	107542	Scheibe	Ø 12,2 x Ø25 x 2,5	1
14	108187	Welle	Ø 15 x 428,5	1
15	107479	Aufnahme	47 x 16 x 24	2
16	107478	Aufnahme	47 x 18 x 42	1
17	106777	Zylinderschraube	DIN84 M 3 x 45	4
18	107490	Blech	16 x 28 x 2,5	2
19	F21048	Washer	DIN125 A 3,2	4
20	104913	Hexagonal nut	DIN985 M 3	4
21	F20203	Hexagonal nut	DIN934 M 6	8
22	F20258	Washer	DIN125 A 6,4	4
23	107477	Aufnahme	45 x 16 x 65	1
24	F20810	Hutmutter	DIN917 M 6	2
25	107489	Ring	Ø 5,2 x Ø 12 x 3,5	1
26	107485	Blech	300 x 52 x 3	1
27	F248555	Senkschraube	DIN7991 M 5 x 20	2
28	F25987	Zylinderschraube	DIN84 M 5 x 30	1
29	107486	Blech	30 x 15 x 8	2
30	107487	Blech	80 x 32 x 5	2
31	F28923	Zylinderschraube	DIN912 M 5 x 20	4
32	107488	Zahnriemenscheibe	Ø 42 x Ø 8 x 22	1
33	F22888	U-Scheibe	DIN125 A 8,4	1
34	F20259	Sechskantmutter	DIN934 M 8	2
