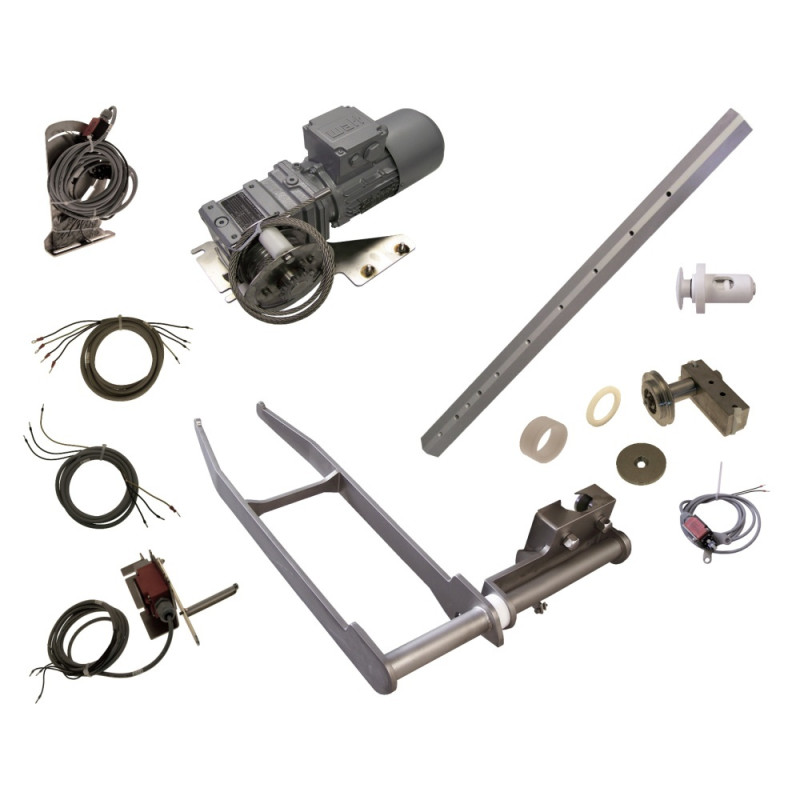

Lifting aid Assembly Ruhle IR56 No. 473 and Higher
| Pos No. | Part No. | Description | Add Info | Required | |
 |
1 | F456311 | Fork | IR 56 | 1 |
 |
2 | F440955 | Guide | IR 56 | 1 |
 |
3 | F27693 | Washer | DIN125 A 10,5 | 8 |
 |
4 | F240571 | Guide | 950 x 57.2 x 54.2 | 1 |
 |
5 | F20693 | Hexagonal bolt | DIN933 M10 x 35 | 6 |
 |
6 | F26379 | Spring lock washer | DIN127 B 10 | 12 |
 |
7 | F22907 | Disc | Ø 10,5 x Ø 35 x 3 | 4 |
 |
8 | F42198 | baffle | IR 56 | 1 |
 |
9 | F440961 | drive | IR 56 | 1 |
 |
10 | F443161 | Push button | IR 56 | 1 |
 |
11 | 106151 | bracket with cable | IR 56 S2 | 1 |
 |
12 | 106147 | Switch cable-breakage safety unit | IR 56 | 1 |
 |
13 | F29347 | Ring | Ø 50,5 x Ø 70 x 30 | 1 |
 |
14 | F22125 | Ring | Ø 50 x Ø 70 x 5 | 1 |
 |
15 | F240003 | Disc | Ø 10,5 x Ø 70 x 6 | 1 |
 |
16 | F22890 | Countersunk bolt | DIN7991 M10 x 30 | 1 |
|
17 | F20258 | Washer | DIN125 A 6,4 | 3 |
|
18 | F24031 | Spring lock washer | DIN127 B 6 | 3 |
 |
19 | F20203 | Hexagonal nut | DIN127 B 6 | 3 |
 |
20 | F27786 | Cylinder head screw | DIN912 M10 x 90 | 2 |
|
21 | F20147 | Hexagonal nut | DIN934 M 10 | 4 |
 |
22 | F26600 | Disc | Ø 8,5 x Ø 20 x 2 | 2 |
|
23 | F20259 | Hexagonal nut | DIN934 M 8 | 24 |
|
24 | F21260 | Spring lock washer | DIN127 B 8 | 2 |
 |
25 | 106150 | Switch unit | IR 56 | 1 |
 |
26 | 106117 | Cable for lifiting aid drive | IR 56 Facelift | 1 |
 |
27 | 106116 | Cable brake recitfier lifting | IR 56 Facelift | 1 |
