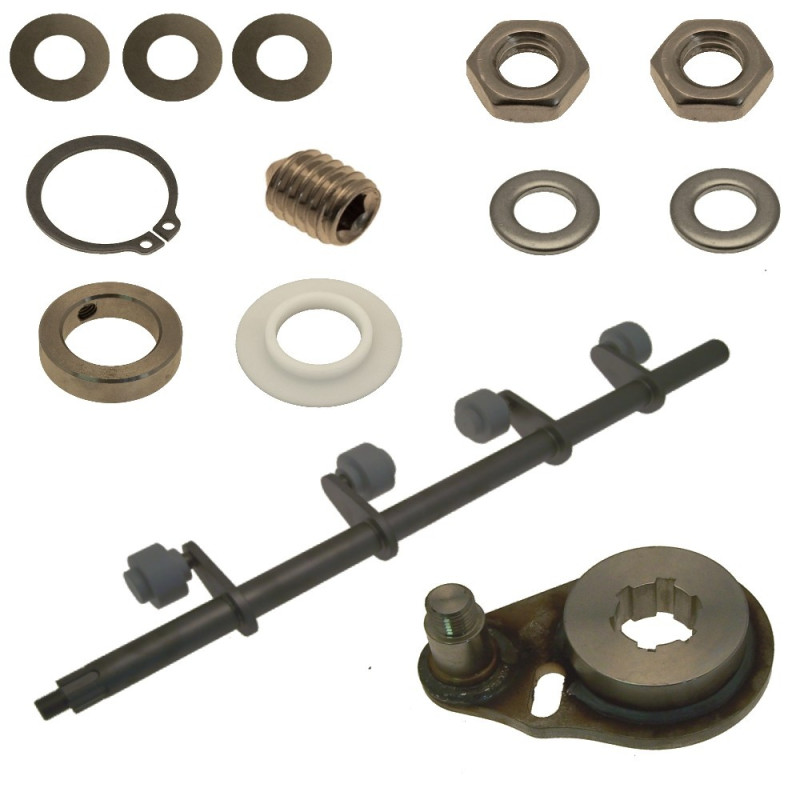

Lifting shaft Complete
| Pos. No. | Part No. | Description | Add. Info | Required | |
|---|---|---|---|---|---|
 |
1 | F450017 | Drive Shaft | IR 112 | 1 |
 |
2 | F29341 | Rolle | Ø 50 x 45 | 4 |
 |
3 | F253004 | Ring | Ø 30,5 x 60 x 8 | 1 |
 |
4 | F249993 | Compensating Disc | Ø 30,5 x Ø 60 x 0,65 | 1 |
 |
5 | F249994 | Compensating Disc | Ø 30,5 x Ø 60 x 1,5 | 1 |
 |
6 | F249995 | Compensating Disc | Ø 30,5 x Ø 60 x 2 | 1 |
 |
7 | F250023 | Ring | Ø 30 x Ø 45 x 12 | 1 |
 |
8 | F20837 | Threaded pin | DIN914 M 8 x 10 | 1 |
 |
9 | F20217 | Locking ring | DIN471 Ø 30 x 1,5 | 1 |
 |
10 | F450020 | Lever | IR 112 | 1 |
 |
11 | 100910 | Washer | DIN125 A 19 | 1 |
 |
12 | F20572 | Hexagonal nut | DIN439 M 18 x 1,5 | 1 |
 |
13 | F23713 | Washer | DIN125 A 17 | 1 |
 |
14 | F23799 | Hexagonal nut | DIN439 M 16 | 1 |
