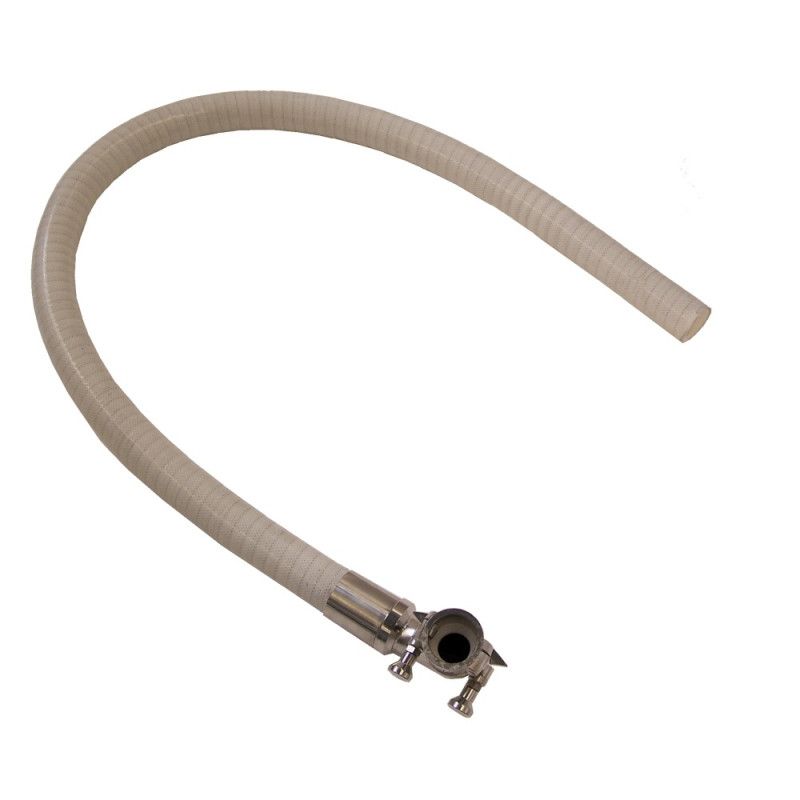

Pressure Hose Exploded View IR56 No. 612 and Higher
| Pos No. | Part No. | Description | Add Info | Required | |
 |
1 | F440270 | Coupling | IR 28/56 | 1 |
 |
2 | F240280 | Seal | Ø 26 x Ø 40 x 6,3 | 1 |
 |
3 | F240271 | Lever | 56,5 x 15 x 10 | 2 |
 |
4 | F21712 | Pin | Ø 5,5 x Ø 5,9 x 25 | 2 |
 |
5 | F240277 | Ring | Ø 10,2 x Ø 15 x 7 | 2 |
 |
6 | F20495 | Locking bolt | GN 617-5-G-NI | 2 |
 |
7 | F240265 | Mushroom-shaped button | M5 - K3025 105 | 2 |
