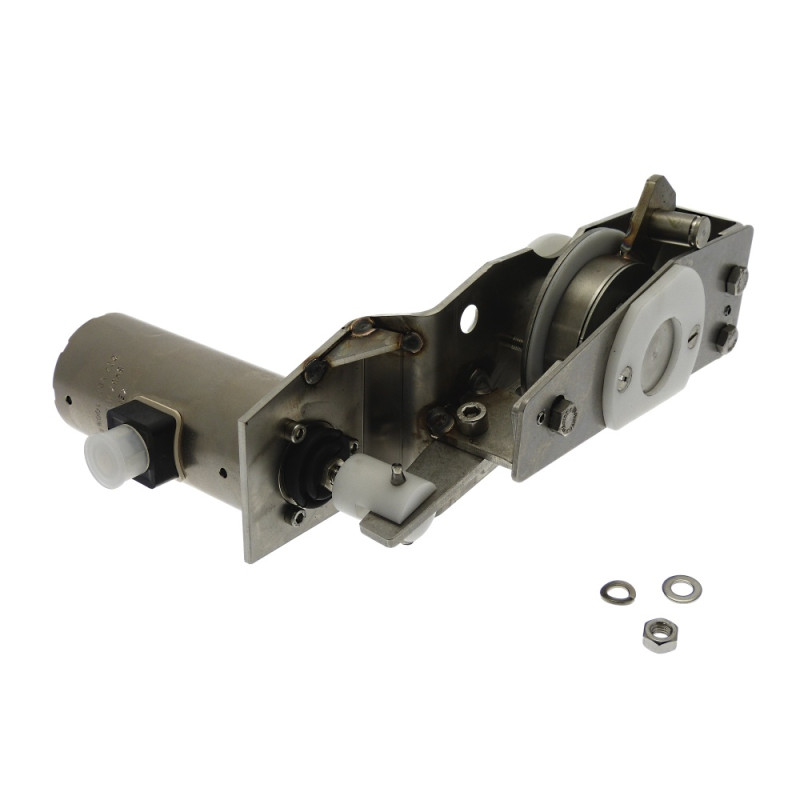

Ratschenfreilauf Complete PR10 No 2515 and Higher
| Pos No. | Part No. | Description | Add Info | Required | |
 |
1 | F20203 | Sechskantmutter | DIN934 M 6 | 3 |
 |
2 | F20245 | Ring | Ø 35,1 x Ø 95 x 1,5 | 1 |
 |
3 | F20246 | Scheibe | Ø 35,5 x Ø 73 x 1,5 | 1 |
 |
4 | F20249 | Bolzen | Ø 15 x 26 | 1 |
 |
5 | F20250 | Druckfeder | Ø 0,8 x De8,8 x 21,5 | 1 |
 |
6 | F20251 | Flansch | Ø 25 x Ø 80 x 18 | 1 |
 |
7 | F20252 | Blech | 107 x 25 x 5 | 1 |
 |
8 | F20253 | Blech | 190 x 65 x 2,5 | 1 |
 |
9 | F20255 | Bolzen | Ø 25 x 35 | 1 |
|
10 | F20259 | Sechskantmutter | DIN934 M 8 | 1 |
 |
11 | F20261 | Paßfeder | A 6 x 6 x 12 | 1 |
 |
12 | F20264 | Senkschraube | DIN963 M 6 x 16 | 2 |
|
13 | F253314 | Senkschraube | DIN963 M 6 x 14 | 2 |
 |
14 | F20266 | Zylinderschraube | DIN912 M 5 x 10 | 3 |
 |
15 | F20263 | Sicherungsring | DIN471 Ø 35 x 1,5 | 1 |
 |
16 | F20690 | Spannstift | DIN1481 Ø 5 x 10 | 2 |
|
17 | F21102 | Zylinderschraube | DIN912 M 8 x 20 | 1 |
 |
18 | F21260 | Federring | DIN128 A 8 | 1 |
 |
19 | F21788 | Bolzen | Ø 6 x 38 | 1 |
 |
20 | F21819 | Sechskantschraube | DIN933 M 8 x 12 | 3 |
 |
21 | F21871 | Zahnrad | Z 25 m 4 Ø 60 x 15 | 1 |
 |
22 | F22888 | U-Scheibe | DIN125 A 8,4 | 1 |
 |
23 | F23692 | Radial-Wellendichtring | Ø 25 x Ø 35 x 6 | 1 |
 |
24 | F20247 | Flansch | Ø 35 x Ø 80 x 15,5 | 1 |
 |
25 | F26536 | Sechskantmutter | DIN439 M 8 | 2 |
 |
26 | F40182 | Kupplung | PR 8 - 20 | 1 |
 |
27 | F41934 | Ring | PR 8 - 15 | 1 |
 |
28 | F457735 | Aufnahme | PR 8 - 15 | 1 |
 |
29 | F26538 | Hubmagnet | GHUX 6124.01.101-22 | 1 |
