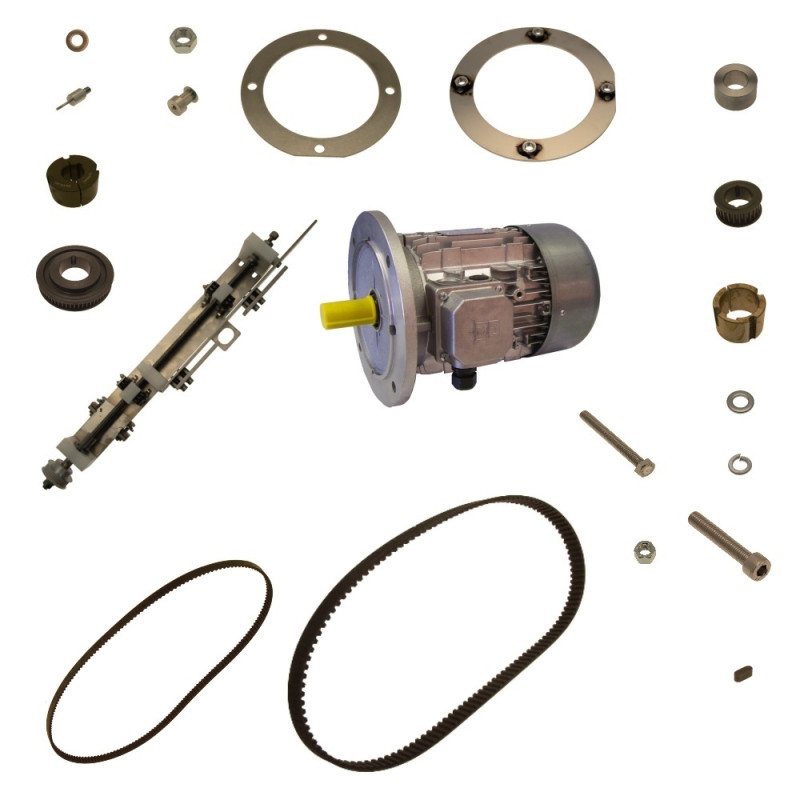

Antrieb Hebehilfe Complete
| Pos. No. | Part No. | Description | Add. Info | Required | ||
|---|---|---|---|---|---|---|
 |
1 | 107188 | Schaltautomat | MGR 400/900/1500 | 1 | |
 |
2 | 107153 | Zahnriemenscheibe | TB64 - 8M - 20 - 2012 | 1 | |
 |
3 | 107154 | Taperbuchse | 2012 - 30 | 1 | |
 |
4 | 107861 | Bolzen | Ø 15 x 52 | 1 | |
 |
5 | 107721 | Zahnriemenscheibe | Ø 10 x Ø 3 x 17,5 | 1 | |
 |
6 | F21048 | Washer | DIN125 A 3,2 | 1 | |
 |
7 | F26357 | Sechskantmutter | DIN934 M 3 | 1 | |
 |
8 | 107652 | Scheibe | Ø 180,5 x Ø 250 x 4 | 1 | |
 |
9 | 107653 | Scheibe | MGR 400/900/1500 | 1 | |
 |
10 | 107593 | Buchse | Ø 28,1 x Ø 50 x 28 | 1 | |
 |
11 | 107155 | Zahnriemenscheibe | TB24-8M-20-1108 | 1 | |
 |
12 | 107156 | Taperbuchse | TB 1108-28 | 1 | |
 |
13 | 108334 | Toothed beld | 1040-8M-20 | 1 | |
 |
14 | 108125 | Toothed beld | 564-3M-6 | 1 | |
 |
15 | F20202 | U-Scheibe | DIN125 A 13 | 4 | |
 |
16 | F20210 | Federring | DIN127 A 12 | 4 | |
 |
17 | F21030 | Zylinderschraube | DIN912 M12 x 60 | 4 | |
 |
18 | F24501 | Paßfeder | A 8 x 8 x 20 | 1 | |
 |
19 | F27299 | Sechskantschraube | DIN933 M 8 x 70 | 1 | |
 |
20 | F20259 | Sechskantmutter | DIN934 M 8 | 1 | |
 |
21 | 107619 | Elektromotor | MRMTTN100Lb4-B5 | 1 |
