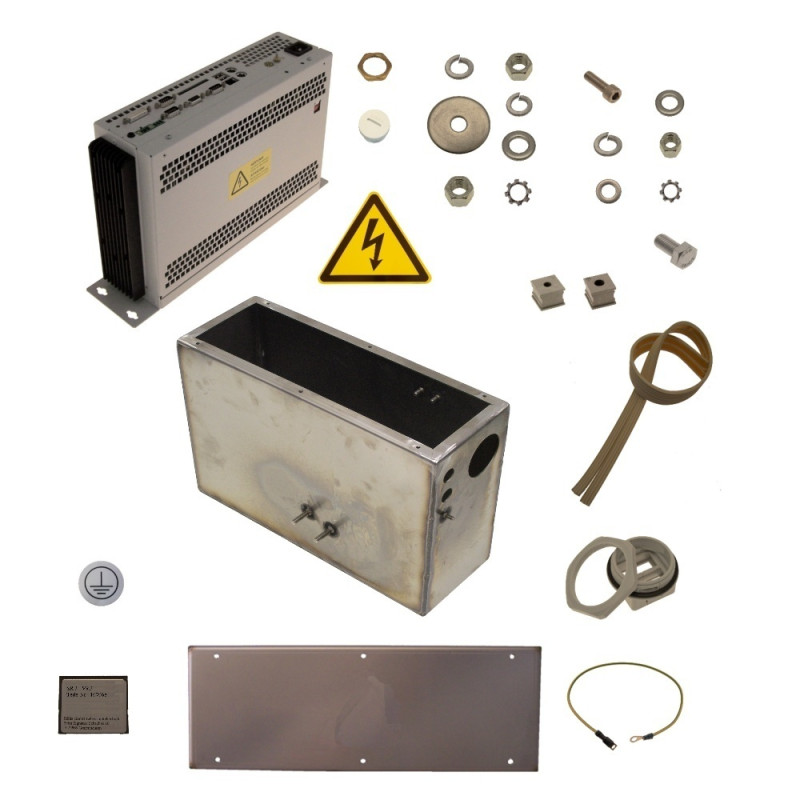

Switch Box Assembly for Ruhle SR3 Meat Dicer with No. 35 and Higher
| Pos No. | Part No. | Description | Add Info | Required | |
 |
1 | F459436 | Switch box | SR 3 | 1 |
 |
2 | F23418 | Disc | Ø 8,5 x Ø 35 x 3 | 2 |
 |
3 | F22888 | Washer | DIN125 A 8,4 | 2 |
 |
4 | F21260 | Spring lock washer | DIN127 B 8 | 4 |
 |
5 | F20259 | Hexagonal nut | DIN934 M 8 | 4 |
 |
6 | F28732 | Lock washer | DIN6797-A ø 6,4 | 3 |
|
7 | F20258 | Washer | DIN125 A 6,4 | 3 |
|
8 | F24031 | Spring lock washer | DIN127 B 6 | 3 |
|
9 | F20203 | Hexagonal nut | DIN934 M 6 | 3 |
 |
10 | F250691 | Lid | 410 x 155 x 18 x 2 | 1 |
 |
11 | F20664 | Seal | 18 x 3 | 0.23 mm |
 |
12 | F21045 | Washer | DIN125 A 5,3 | 6 |
|
13 | F20260 | Spring lock washer | DIN127 B 5 | 6 |
 |
14 | F22174 | Cylinder head screw | DIN912 M 5 x 12 | 6 |
 |
15 | F25910 | Hexagonal bolt | DIN933 M 5 x 25 | 1 |
|
16 | F26336 | Lock washer | DIN6797-A Ø 5,3 | 1 |
|
17 | F21045 | Washer | DIN125 A 5,3 | 3 |
|
18 | F21028 | Hexagonal nut | DIN934 M 5 | 2 |
|
19 | F20260 | Spring lock washer | DIN127 B 5 | 1 |
|
20 | F20664 | Seal | 18 x 3 | 0.812 mm |
 |
21 | F251999 | Cable gland | KVT63-4, grey | 1 |
 |
22 | F252000 | Cable sleeve | KT 6, grey | 3 |
 |
23 | F26115 | blank plug | M 20 x 1,5 | 2 |
 |
24 | F25780 | Hexagonal nut | M 20 x 1,5 | 2 |
 |
25 | 107068 | Compact-Flash 512 MB | SR 3 / MSC | 1 |
 |
26 | 106489 | Computer box | CPU Celeron 600 | 1 |
 |
27 | F148541 | Sticker | BMK02 | 3 |
 |
28 | F10131 | Sticker | flash | 1 |
 |
29 | 104916 | Cable sleeve | KT 8, grey | 1 |
 |
30 | 106635 | ground wire | lid - SK 3 (PC-box) | 1 |
