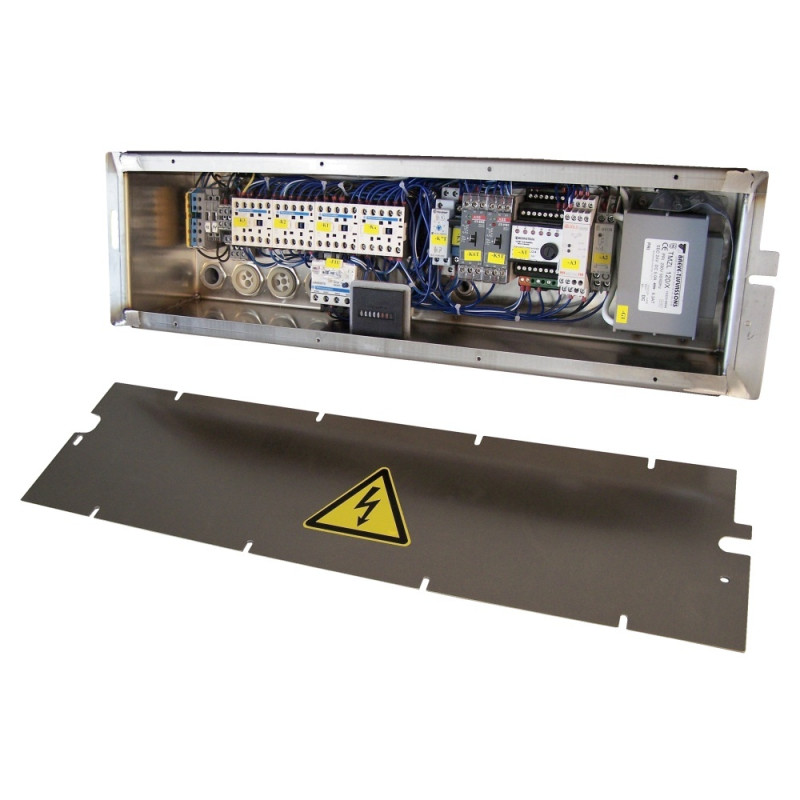

Switch Box Assembly for SR1 T
| Pos No. | Part No. | Description | Add Info | Required | |
 |
1 | F26773 | Solenoid monitoring station | MÜZ 602/24V | 1 |
 |
2 | F27057 | Phase sequence relay | IK 9179 | 1 |
 |
3 | F26393 | Current relay | MK 9053N | 1 |
 |
4 | F20723 | Fuse terminal grey | 5.0 x 20mm | 2 |
 |
5 | F26053 | Fuse 2.0 AT | 5.0 x 20mm | 2 |
 |
6 | F27065 | Side plate grey | FEM 8S | 1 |
 |
7 | F22287 | Motor protect relay 2.6 -3.7 A | LR 2-K0310 | 1 |
 |
8 | F25994 | Fuse 1.6 AT | 5,0 x 20 mm | 2 |
 |
9 | F20732 | Power supply 230VAC/24VDC | BV 1329-0043-00000 | 1 |
 |
10 | F26434 | Power contactor 24VDC | LP1-K0601 BD3 | 3 |
 |
11 | F27627 | Auxiliary contactor 24VDC | CA3KN22BD3 | 1 |
 |
12 | F27969 | Time relay | CT-VWE | 1 |
 |
13 | F20734 | Time relay | CT-ERE | 1 |
 |
14 | F41539 | Relay | 2 We / 24 VDC / 6A | 1 |
 |
15 | F26382 | Counter - operating hours 230V | BW 40 | 1 |
 |
16 | F28384 | Resistor | 220 kOhm / 1.4 W | 1 |
 |
17 | F28385 | Resistor | 100 kOhm / 1.4 W | 1 |
 |
18 | F27053 | Terminal - 3x, grey | 2.5mm² | 3 |
 |
19 | F27054 | Terminal - 2x, blue | 4mm² | 1 |
 |
20 | F20719 | Protective conductor terminal | 2x4mm² | 1 |
 |
21 | F28438 | Terminal - 2x, grey | 4mm² | 1 |
 |
22 | F28442 | Side plate grey | FEM 4A | 1 |
 |
23 | F28338 | Side plate grey | FED 3E | 1 |
 |
24 | F246492 | Cable gland | M 32 x 1.5 2 x 7/3 x 7 S | 2 |
 |
25 | F246494 | Cable gland | M 32 x 1.5 2 x 8/2 x 6 | 1 |
 |
26 | F24720 | Hexagonal Nut | M 32 x 1,5 | 3 |
 |
27 | F29057 | Cable gland | M 25 x 1.5 | 1 |
 |
28 | F29060 | Hexagonal Nut | M 25 x 1,5 | 1 |
 |
29 | F148541 | Sticker | BMK02 | 1 |
 |
30 | F256572 | Time relay | 1W 12-240VAC/DC | 1 |
 |
31 | F20948 | Cable gland | M 16 x 1.5 | 1 |
 |
32 | F246330 | Hexagonal Nut | M 16 x 1.5 | 1 |
 |
33 | F10131 | Sticker | flash | 1 |
 |
34 | F20664 | Seal | 18 x 3 | 2 |
 |
35 | 102149 | Circuit diagram | SR 1 Turbo | 1 |
