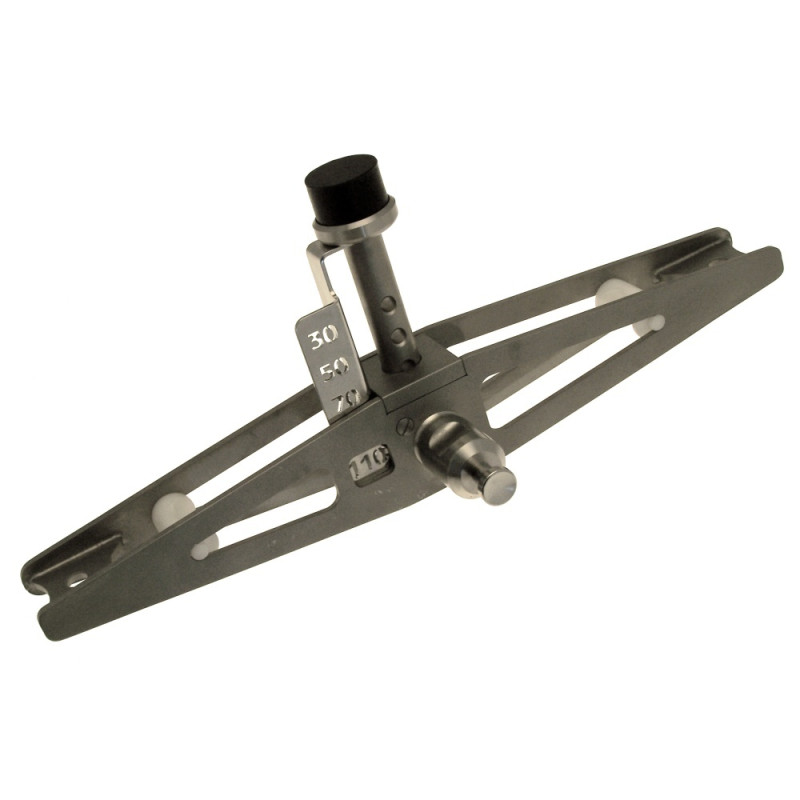

Traverse Complete Ruhle IR56 No. 473 and Higher
| Pos No. | Part No. | Description | Add Info | Required | |
 |
1 | 105762 | Traverse | IR 28/56 | 1 |
 |
2 | 105672 | Housing | 50 x 50 x 70 | 1 |
 |
3 | 105676 | Shaft | Ø 22 x 152 | 1 |
 |
4 | 105674 | Shaft | Ø 15 x 100 | 1 |
 |
5 | F248042 | Pressure spring | d1.25 x De13.75 x 27 | 2 |
 |
6 | F28447 | Cylindrical pin | ISO2338 - Ø 8 m6 x 20 | 2 |
 |
7 | 107082 | Linsensenkschraube | DIN964 M 6 x 45 | 2 |
 |
8 | F29099 | Sleeve nut | M 6 x 15 | 2 |
 |
9 | 105673 | Shaft | Ø 35 x 64 | 1 |
 |
10 | 105677 | bushing | Ø 46 x 12 | 1 |
 |
11 | F255622 | Rubber pad | Ø 40 x 30 x M 8 x 20 | 1 |
 |
12 | 105678 | plate / sheet | 157 x 67,5 x 32,5 x 2,5 | 1 |
 |
13 | 106647 | Disc | Ø 6,5 x Ø 55 x 5 | 1 |
 |
14 | F253314 | Countersunk bolt | DIN963 M 6 x 14 | 1 |
 |
15 | F26986 | Countersunk bolt | DIN7991 M 8 x 16 | 1 |
