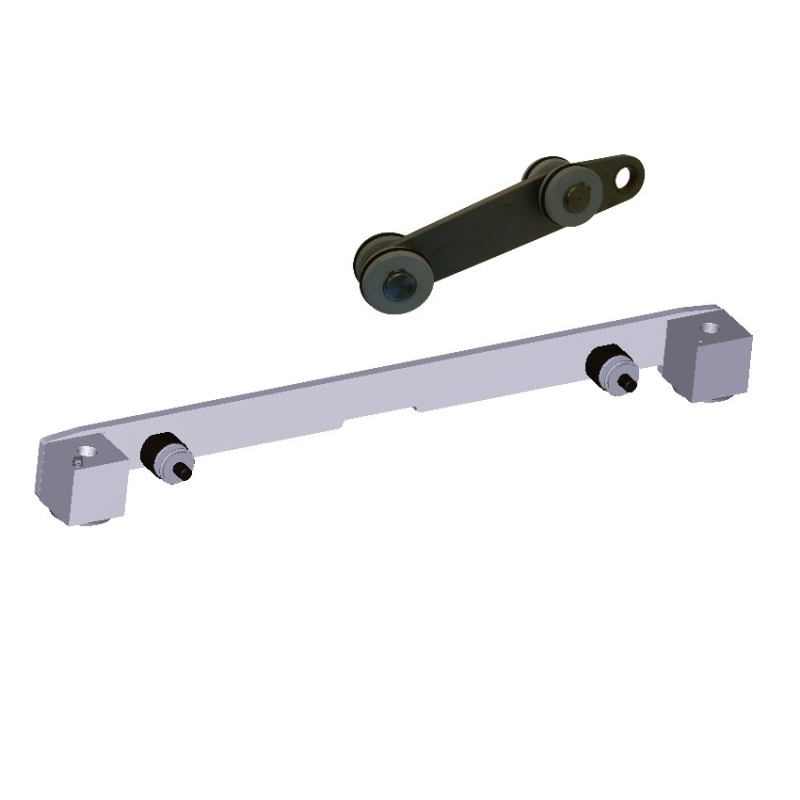

Traverse Complete 2
| Pos. No. | Part No. | Description | Add. Info | Required | ||
|---|---|---|---|---|---|---|
 |
1 | F250286 | Plate | 915 x 81 x 12 | 1 | |
 |
2 | F250287 | Housing | 75 x 75 x 69.5 | 2 | |
 |
3 | F26861 | Cylindrical pin | ISO8734 - Ø10 m6 x 20 | 4 | |
 |
4 | F253040 | Cylinder head screw | DIN6912 M12 x 25 | 4 | |
 |
5 | F25831 | Cylinder head screw | DIN912 M12 x 25 | 4 | |
 |
6 | F250289 | Bolt | Ø 50 x 81 | 2 | |
 |
7 | F29208 | Ring | Ø 25,5 x Ø 46 x 3 | 4 | |
 |
8 | F450284 | Lever | IR 112 | 2 | |
 |
9 | F250290 | Disc | Ø 16,5 x Ø 41 x 3 | 2 | |
 |
10 | F252764 | Hexagonal nut | DIN439 M 16 x 1,5 | 4 | |
 |
11 | F20258 | Washer | DIN125 A 6,4 | 2 | |
 |
12 | F20417 | Hexagonal bolt | DIN933 M 6 x 16 | 1 |
