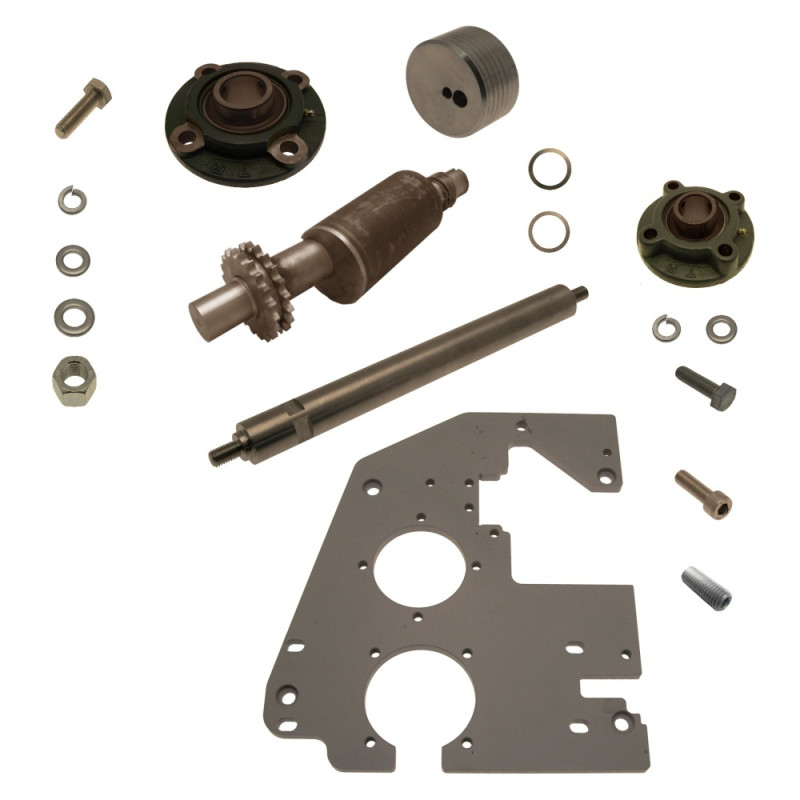

Tumbling Shaft Complete for Ruhle SR2 Dicer No. 249 and Higher
| Pos No. | Part No. | Description | Add Info | Required | |
 |
1 | F26889 | Shaft | Ø 30 x 341 | 4 |
 |
2 | F26883 | Flange bearing | UCFC 207 | 1 |
 |
3 | F27693 | Washer | DIN125 A 10,5 | 8 |
 |
4 | F26379 | Spring lock washer | DIN127 B 10 | 8 |
 |
5 | F22919 | Hexagonal bolt | DIN933 M10 x 45 | 4 |
 |
6 | F26888 | Plate | 390 x 343 x 12 | 1 |
 |
7 | F41393 | Tumbling shaft | SR 2 / SR 2 T | 1 |
 |
8 | F21249 | Compensating disc | Ø 36 x Ø 45 x 0,5 | 2 |
 |
9 | F245405 | Disc | Ø 36 x Ø 45 x 0,65 | 2 |
 |
10 | F22621 | Cylinder head screw | DIN912 M 8 x 25 | 1 |
 |
11 | F20227 | Threaded pin | DIN914 M 8 x 16 | 1 |
 |
12 | F26883a | Flange bearing | UCFC 207 | 1 |
 |
13 | F26887 | Weight | Ø 90 x 50 | 1 |
 |
14 | F20693 | Hexagonal bolt | DIN933 M10 x 35 | 4 |
|
15 | F20202 | Washer | DIN125 A 13 | 4 |
 |
16 | F20204 | Hexagonal Nut | DIN934 M 12 | 4 |
