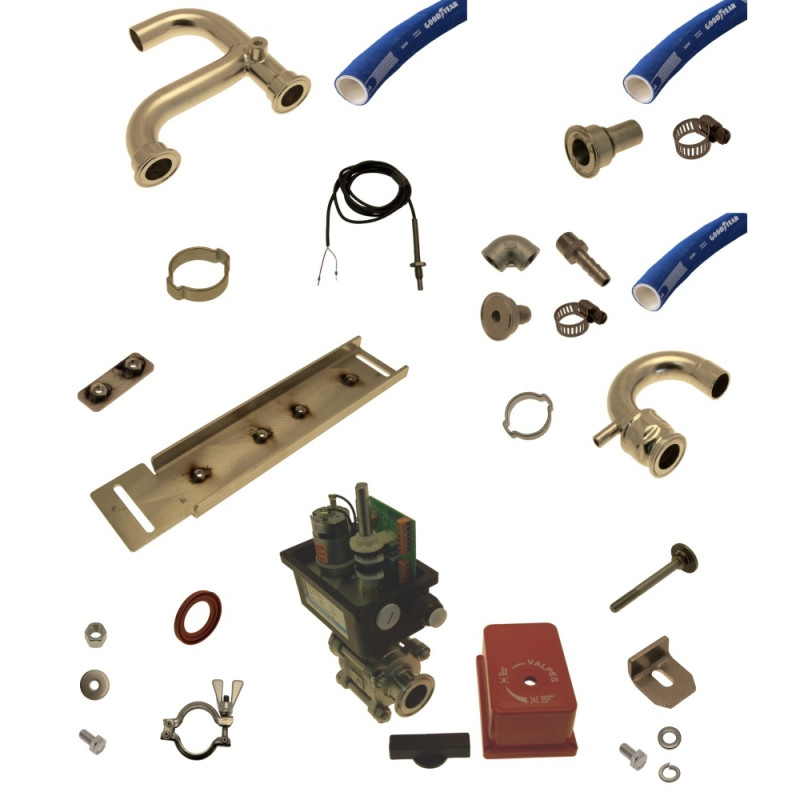

Valve Unit Assembly for IR 56 No. 210 and higher
| Pos No. | Part No. | Description | Add Info | Required | |
 |
1 | F440715 | Housing | IR 28/56 | 1 |
 |
2 | F444477 | Mixer valve | IR 28/56 | 2 |
 |
3 | F240716 | Bracket | 39 x 35 x 19 | 4 |
 |
4 | F22888 | Washer | DIN125 A 8,4 | 6 |
 |
5 | F21260 | Spring lock washer | DIN127 B 8 | 6 |
 |
6 | F20687 | Hexagonal bolt | DIN933 M 8 x 35 | 4 |
 |
7 | 101433 | piping | IR 28/56 | 1 |
 |
8 | F29110 | Seal | Ø 32 x Ø 52,5 x 6,5 | 4 |
 |
9 | F29114 | Clamp light | DIN25-40/1-1/2" | 4 |
 |
10 | F449543 | tube bend | IR 28/56 | 4 |
|
11 | F22449 | Hexagonal bolt | DIN933 M 8 x 20 | 2 |
 |
12 | F441419 | Hose | IR 28/56 | 1 |
 |
13 | F440717 | Base | IR 28/56 | 1 |
 |
14 | F22907 | Disc | Ø 10,5 x Ø 35 x 3 | 2 |
 |
15 | F20147 | Hexagonal nut | DIN934 M 10 | 2 |
 |
16 | F445494 | Starting sheet | IR 28/56 | 1 |
