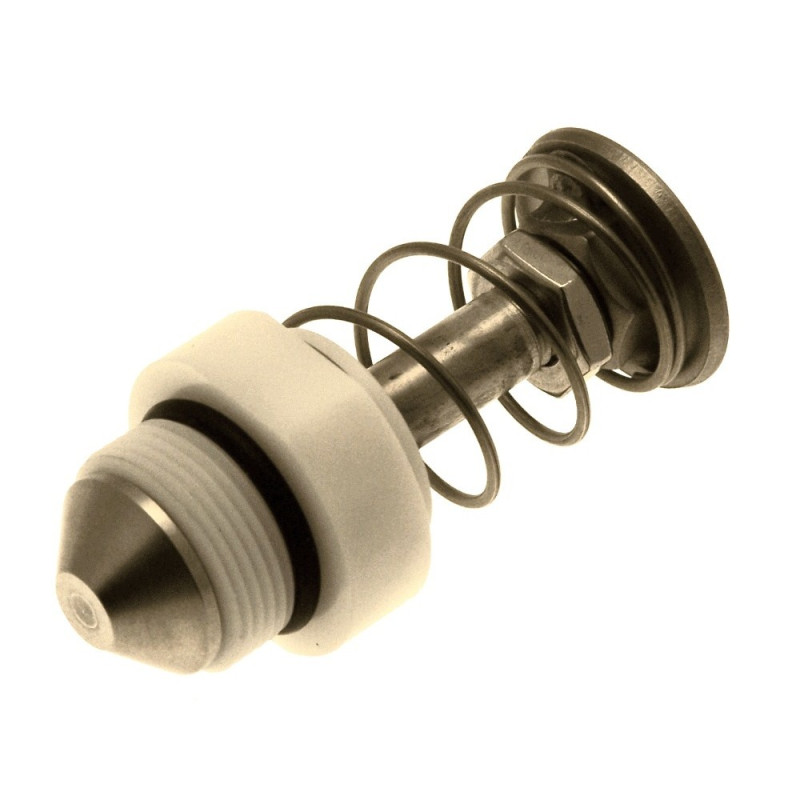

Valve Unit Exploded View for Ruhle PR10 No. 2515 and Higher
| Pos No. | Part No. | Description | Add Info | Required | |
 |
1 | F26551 | Nut | Ø 35 x 27 | 1 |
 |
2 | F20104 | bolt | Ø 23 x 74 | 1 |
 |
3 | F20129 | Radial shaft seal | Ø 10 x Ø 18 x 6 | 1 |
 |
4 | F20136 | Slide bushing | DIN1850 Ø 10 x Ø 16 x 10 | 1 |
 |
5 | F20138 | O-ring | Ø 20 x 3 | 1 |
 |
6 | F22560 | Pressure spring | d1.5 x De28 x 50 | 1 |
 |
7 | F20047 | Hexagonal nut | DIN439 M 10 | 1 |
 |
8 | F41543 | Switching head | PR 15 - 30 | 1 |
