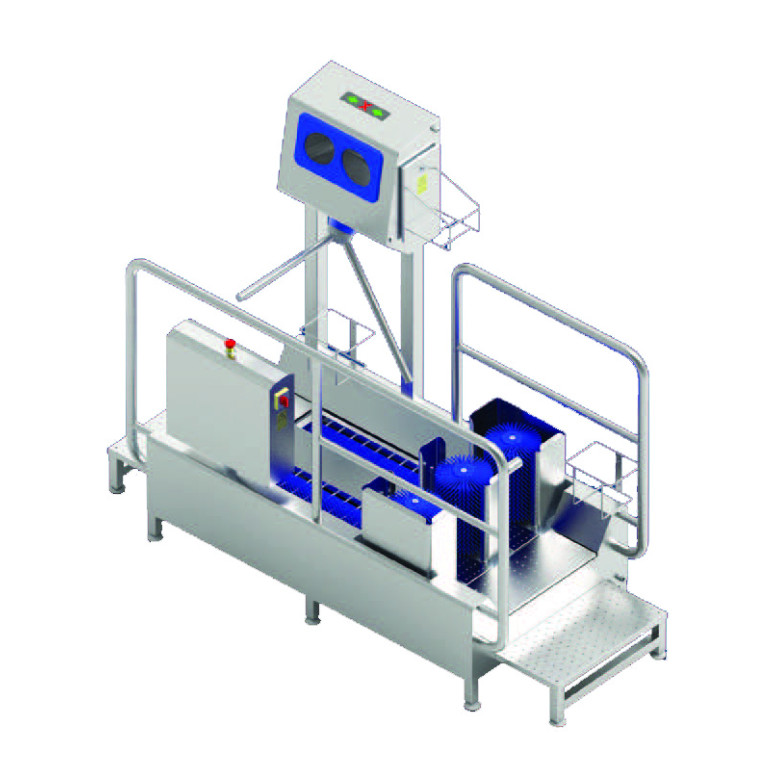

High-Heeled Shoe Washer and Hand Disinfection Unit with Access Control
Ships from: FOB Brampton, ON Canada (O)
U/M: Each
Stock: On Order
Shipping Dimension: 120 X 38 X 50
Shipping Weight: 680 lbs
CM: 8060
U/M: Each
Stock: On Order
Shipping Dimension: 120 X 38 X 50
Shipping Weight: 680 lbs
CM: 8060
Financing Available
Note: Shipping to be determined
High-Heeled Shoe Washer and Hand Disinfection Unit with Access Control
Details related to Washer Length and Brushes
- Washer made of stainless steel materials 1.4301.
- Water supply: 1/2”.
- Water drainage: PVC ø 50 mm.
- Power supply: 220 V, 60 Hz 3Ph
- Control: 24V, IP67.
- Drive: 5 x 0,25 kW or 3 x 0,25 kW, IP55.
- Washer width: 38 inches
- Sensors operated.
- Automatic washing liquids supply.
Details related to Hand Washer and Disinfection
- It can link the passage function with the need to perform hygienic activities.
- Making proper hand hygienic activities (disinfection) confirmed by light control (red-green), turns rotary gate about 1/3 of tripod rotation and allows for passage of one person.
- Basket for 5-liter container of liquid.
- Programming the times of individual cycles and the amount of provide liquids.
- Anti-vandalism sound alarm.
- Controlling voltage: 24 V – PLC Siemens Logo! IP 65.
- Water supply: 1/2”.
- Water drainage: PVC ø 16 mm.
- Emergency passage in case of lack of power supply.
| Model | Vertical Brushes Height (inches) | Horizontal Brushes Length (inches) | Washer Length (inches) | Weight (lbs) |
| 01 - Standard | 3 | 24 | 86 | 351 |
| 02 - Optional | 3 | 36 | 93 | 377 |
| 03 - Optional | 3 | 48 | 116 | 437 |
| 04 - Optional | 6 | 24 | 86 | 353 |
| 05 - Optional | 6 | 36 | 93 | 380 |
| 06 - Optional | 6 | 48 | 116 | 444 |
| 07 - Optional | 12 | 24 | 86 | 355 |
| 08 - Optional | 12 | 36 | 93 | 382 |
| 09 - Optional | 12 | 48 | 116 | 445 |
