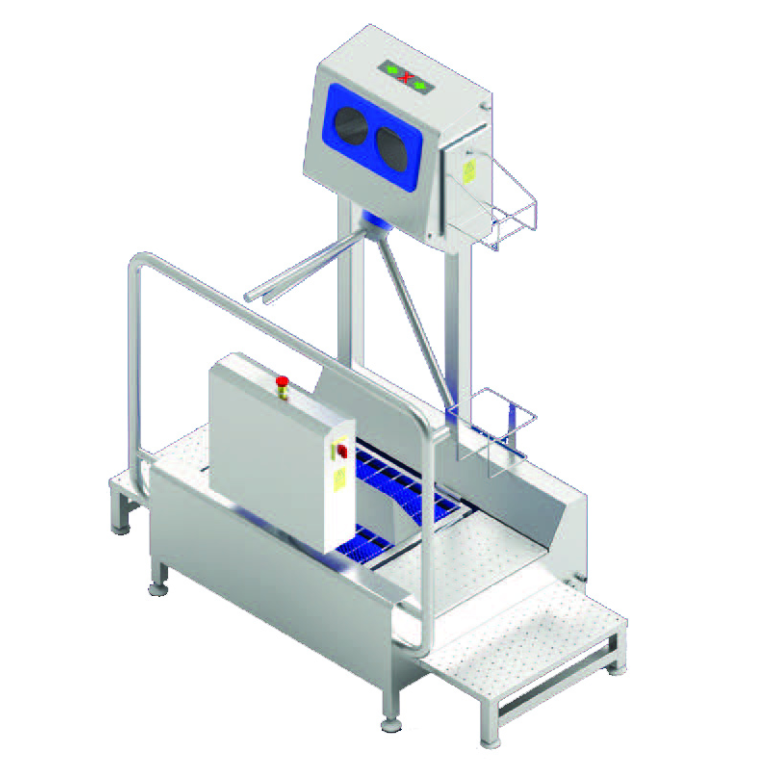

Low-heeled Shoe Washer and Hand Disinfectant unit with Access Control

Ships from: FOB Brampton, ON Canada (O)
U/M: Each
Stock: On Order
Shipping Dimension: 60 X 40 X 75
Shipping Weight: 397 lbs
CM: 7966
Financing Available
Note: Shipping to be determined
* Model for Boot Washer :

Low-heeled Shoe Washer and Hand Disinfectant unit with Access Control


Details related to Washer Length and Brushes

  • Washer made of stainless steel 1.4301.
  • Two rotating brushes in length from 12 to 60 inches
  • Water output: 1/2”.
  • Water drainage: PVC ø 50 mm.
  • Power supply: 220V 60Hz 3Ph
  • Drive: 2 x 0,25 kW, IP 55.
  • Automatic volume regulated washing or disinfectant liquid supply.

Details related to Hand Disinfection

  • It can link the passage function with the need to perform hygienic activities.
  • Making proper hand hygienic activities (disinfection) confirmed by light control (red-green), turns rotary gate about 1/3 of tripod rotation and allows for passage of one person.
  • Basket for 5-liter container of liquid.
  • Programming the times of individual cycles and the amount of provide liquids.
  • Anti-vandalism sound alarm.
  • Controlling voltage: 24 V – PLC Siemens Logo! IP 65.
  • Water supply: 1/2”.
  • Water drainage: PVC ø 16 mm.
  • Emergency passage in case of lack of power supply.
Model Washer Length (inches) Brushes Length (inches) Washer Width (inches) Washer Height (inches) Weight (lbs)
01 - Standard 54 12 34 46 190
02 - Optional 65 24 34 46 232
03 - Optional 78 36 34 46 307
04 - Optional 91 48 34 46 323
05 - Optional 105 60 34 46 397
