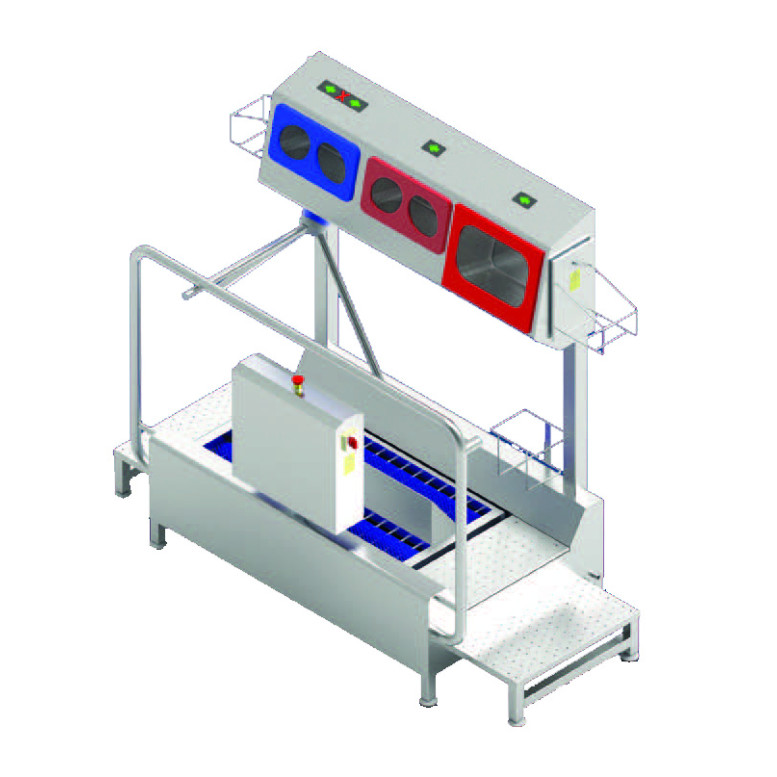

Low-heeled Shoe Washer and Hand Washer Dryer Disinfection unit with Access Control

Ships from: FOB Brampton, ON Canada (O)
U/M: Each
Stock: On Order
Shipping Dimension: 110 X 42 X 50
Shipping Weight: 632 lbs
CM: 7968
Financing Available
Note: Shipping to be determined
* Model for Low-heeled Boot Washer:

Low-heeled Shoe Washer and Hand Washer Dryer and Disinfection unit with Access Control


Details related to Washer Length and Brushes

  • Washer made of stainless steel 1.4301.
  • Two rotating brushes in length from 36 to 60 inches.
  • Water output: 1/2”.
  • Water drainage: PVC ø 50 mm.
  • Power supply: 220V 60Hz 3Ph
  • Drive: 2 x 0,25 kW, IP 55.
  • Automatic volume regulated washing or disinfectant liquid supply.

Details related to Hand Washer, Dryer and Disinfection

  • Making proper hand hygienic activities (washing, drying, disinfection) confirmed by light control (red-green), turns rotary gate about 1/3 of tripod rotation and allows for passage of one person.
  • Basket for 5-liter container of liquid.
  • Programming the times of individual cycles and the amount of provide liquids.
  • Anti-vandalism sound alarm.
  • Controlling voltage: 24 V – PLC Siemens Logo! IP 65.
  • Water supply: 1/2”.
  • Water drainage: PVC ø 16 mm.
  • Emergency passage in case of lack of power supply.
  • Vent air spray buttons.
  • Installation: to the wall, using a floor construction, on the washer units.
Model Washer Length (inches) Brushes Length (inches) Washer Width (inches) Washer Height (inches) Weight (lbs)
03 78 36 38 46 307
04 91 48 38 46 323
05 105 60 38 46 397
