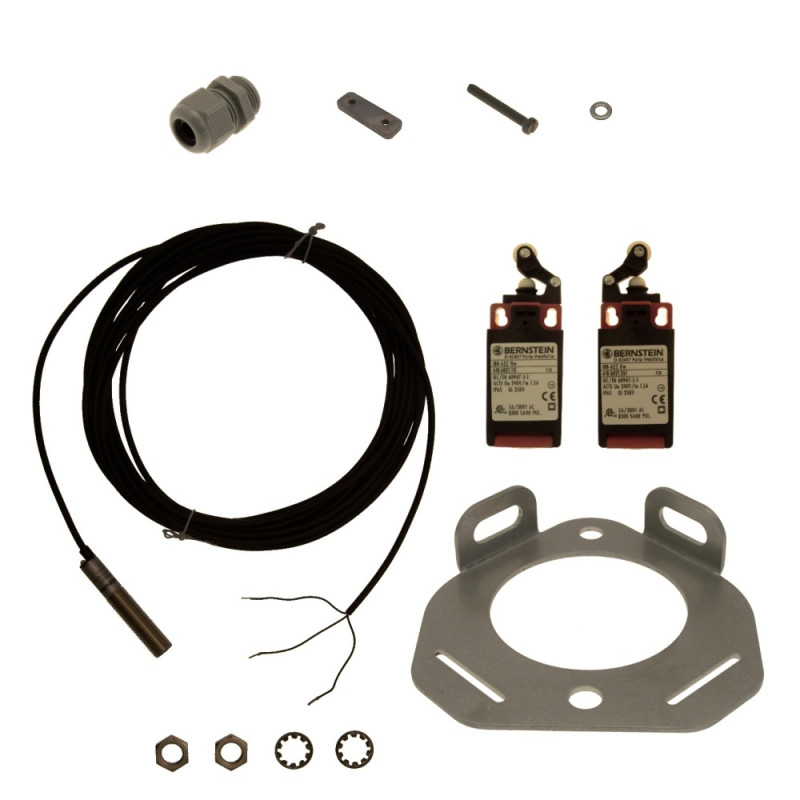

Bracket with cable exploded view Ruhle SR3 No. 35 and Higher - 104729

Type: 104729
Ships from: FOB Brampton Canada
U/M: Each
Stock: On Order
CM: 1134

Note: Shipping to be Determined.

* bracket with cable 5 SR3 Lifting unit No. 35 and higher:

CM Machine Services Ltd. Product Information

To make Purchase Call 905-793-3994 or Email sales@cmmachineservices.net Prices are subject to change without notice.

Bracket with cable exploded view Ruhle SR3 No. 35 and Higher - 104729

Type: 104729
Location: FOB Brampton Canada
U/M: Each
Stock: On Order
CM Product Code: 1134

Note: Shipping to be Determined.

* bracket with cable 5 SR3 Lifting unit No. 35 and higher:
--F28588 Bracket
--F26346 plate / sheet
--F20570 Washer
-- F20569 Cylinder head screw
--F27081 proximity switch
--F20932 Limit switch
--F22285 Limit switch
--F29058 Cable gland

Bracket with cable exploded view Ruhle SR3 No. 35 and Higher

Pos No.	Part No.	Description	Add Info	Required
1	F28588	Bracket	155 x 155 x 32 x 3	1
2	F26346	plate / sheet	36 x 12 x 4	2
3	F20570	Washer	DIN125 A 4,3	4
4	F20569	Cylinder head screw	DIN84 M 4 x 30	4
5	F27081	proximity switch	KIN-M12PS/004 KL6	2
6	F20932	Limit switch	188-A2Z right	1
7	F22285	Limit switch	188-A2Z left	1
8	F29058	Cable gland	M 20 x 1.5	2

CM Machine Services Ltd. | 55 Stafford Drive Unit "I" | Brampton, On L6W 1L3

PH: 905-793-3994 | Contact: sales@cmmachineservices.net

Description

Bracket with cable exploded view Ruhle SR3 No. 35 and Higher

Pos No.	Part No.	Description	Add Info	Required
1	F28588	Bracket	155 x 155 x 32 x 3	1
2	F26346	plate / sheet	36 x 12 x 4	2
3	F20570	Washer	DIN125 A 4,3	4
4	F20569	Cylinder head screw	DIN84 M 4 x 30	4
5	F27081	proximity switch	KIN-M12PS/004 KL6	2
6	F20932	Limit switch	188-A2Z right	1
7	F22285	Limit switch	188-A2Z left	1
8	F29058	Cable gland	M 20 x 1.5	2
