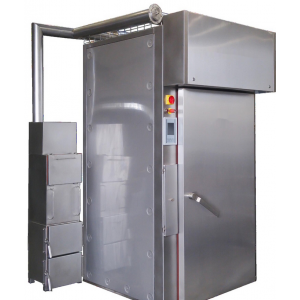

Smoking and Scalding Chamber - Single Trolley Designed for the professional thermal processing ... Read More
  • Stock: On order
  • Brand: 1299
  • Type: One Trolley

Available Options

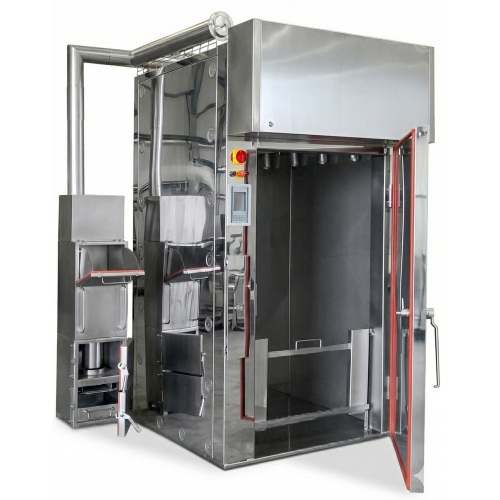

Smoking and Scalding Chamber - Single Trolley

Designed for the professional thermal processing of cold cuts, meats, poultry, fish, and cheese. This versatile unit excels in drying, smoking, scalding, roasting, and chilling, ensuring high-quality results for food processing plants.


Technical Specifications

Feature Details
Heating Energy Heating oil, Natural/Liquefied gas, Electricity, Process steam
Heating Power 30 kW
Capacity 1 Smoking Trolley

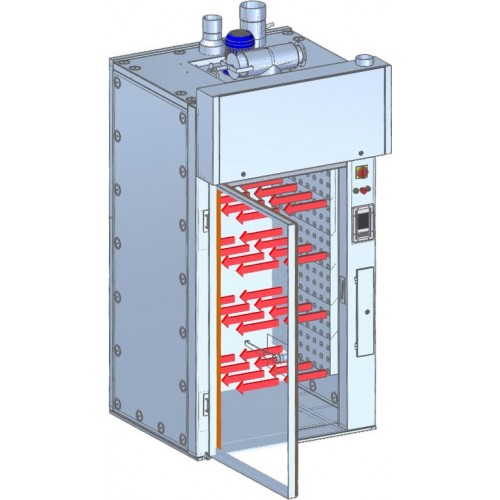

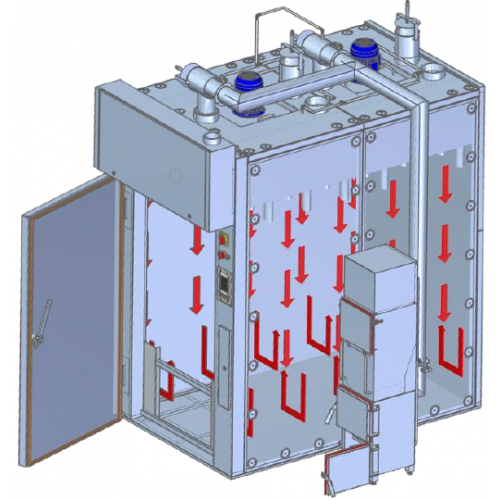

Air Circulation Vertical or Horizontal variants available
Control System Mikster MCC-100 or Mikster INDU iMAX 500 Microprocessor
Standard Processes Settling, Drying (0-80°C), Smoking (0-99°C), Scalding (0-90°C), Roasting (0-90°C), Ventilation Chilling
Optional Processes High-Temperature Roasting (up to 180°C)

Key Product Features

  • High-Quality Construction: Executed entirely of acid-resistant stainless steel for maximum hygiene and durability.
  • Superior Insulation: Features a fully hermetic body with specialized insulation (50mm walls, 70mm ceiling, and 100mm front surface) to maintain precise temperatures.

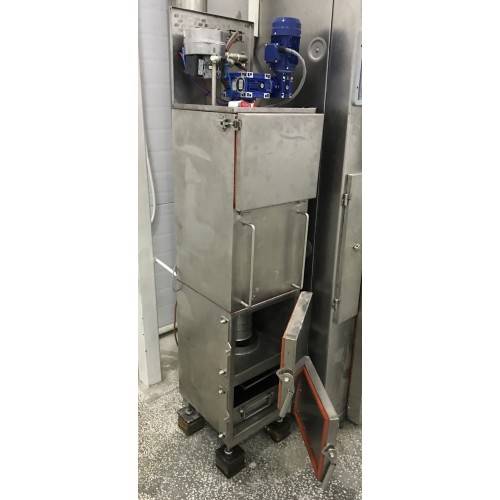

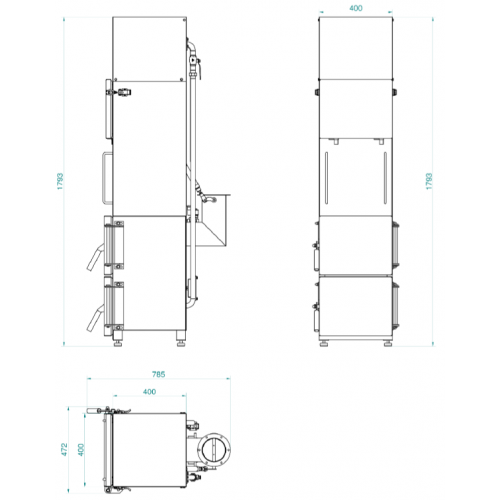

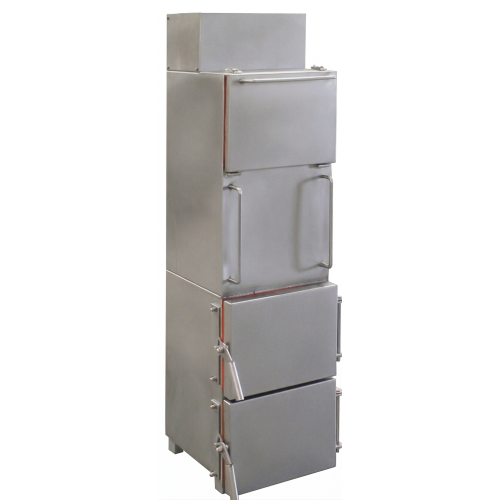

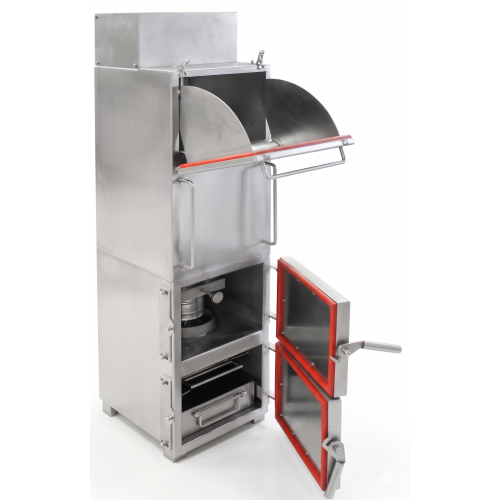

  • Smart Smoke Generation: Includes an automatic smoke generator with an ignition prevention system and a built-in automatic cleaning system.
  • Ergonomic Design: Equipped with double-hinged doors (available in left or right-handed versions) and a reinforced 5mm steel floor to accommodate the heaviest industry trolleys.
  • Customizable Layout: Modular design allows for bespoke dimensions to fit your specific plant space.

PREMIUM LINE PACKAGE INCLUDED

Purchasing the Premium Line version provides several high-value additions:

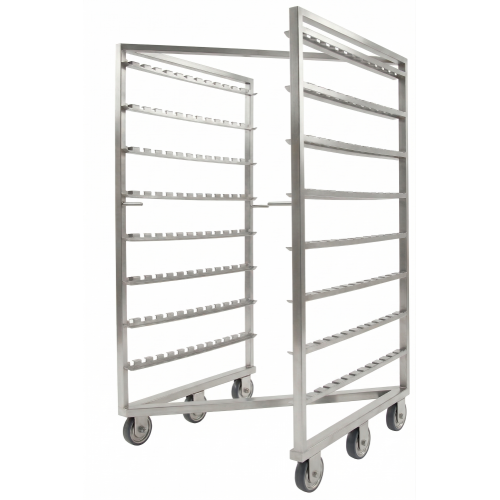

  • Complete Trolley Set: Includes rods (for vertical circulation) or rods and wire meshes (for horizontal circulation).
  • Chimney System: Full chimney pipe installation with roofing, up to 5 meters above ground level.
  • Safety First: Internal safety release system allowing the chamber to be opened from the inside at any time.
