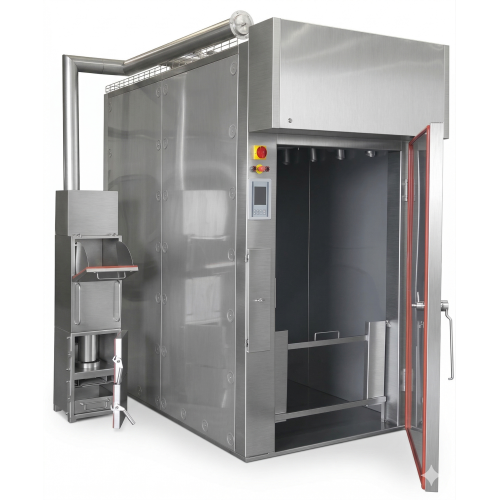

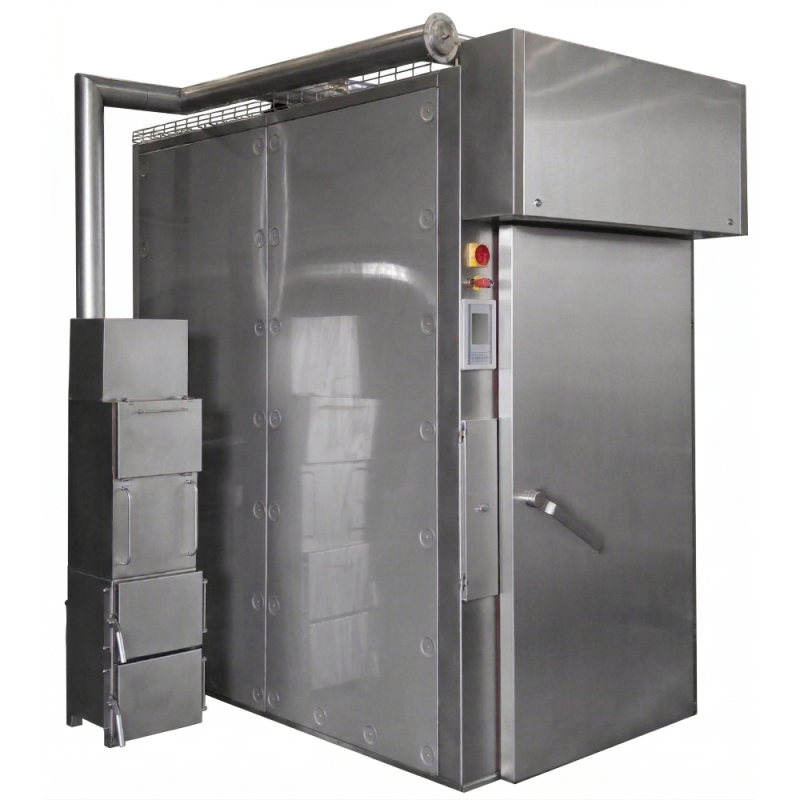

Two Trolley Smoke Chamber

Type: Two Trolley
Ships from: FOB Brampton, ON Canada
U/M: Each
Stock: On Order
CM: 7803

Financing Available

Note: Shipping to be determined

* Heating Type:

* Smoking Type:

* Electrical:

* Chamber Air Flow:

Extra Options:
Additional Doors
Round Shape View Finder 250-280mm
Rotary Rinsing nozzle per each trolley
Rectangular Glass in Doors 700x1200x1500mm
PC Archivization

ESA Certification Optional:

Installation and Training:

Brochure

CM Machine Services Ltd. Product Information

To make Purchase Call 905-793-3994 or Email [email protected] Prices are subject to change without notice.

Two Trolley Smoke Chamber

Type: Two Trolley
Location: FOB Brampton, ON Canada
U/M: Each
Stock: On Order
CM Product Code: 7803

Financing Available

Note: Shipping to be determined

* Heating Type:
--Electricity
--Gas
--Steam

* Smoking Type:
--Smoke Generator(hot smoking)
--Liquid Smoking
--Cold Smoking

* Electrical:
--440V 60Hz 3Ph
--220V 60Hz 3ph
--575V 60Hz 3ph

* Chamber Air Flow:
--Vertical Smoking
--Horizontal Smoking

Extra Options:
Additional Doors
Round Shape View Finder 250-280mm
Rotary Rinsing nozzle per each trolley
Rectangular Glass in Doors 700x1200x1500mm
PC Archivization

ESA Certification Optional:
--Yes
--No

Installation and Training:
--Yes
--No

The smoking chamber is designed for the thermal processing of cold cuts, meats, poultry, fish and cheese. The basic processes include: drying, smoking, scalding, roasting and chilling. The modular design ensures uniform temperature and color throughout the chamber.

FEATURES

Multi-Process Capability: Includes settling, drying, smoking, scalding, roasting, and chilling.
High-Quality Build: Executed entirely of high-quality acid-resistant steel.
Precise Insulation: Side walls (50mm), Ceiling (70mm), and Front/Doors (100mm) for maximum thermal retention.

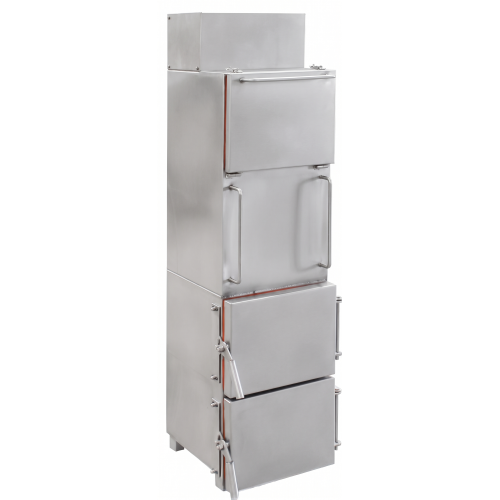

Smoke Generation: Automatic generator with ignition prevention and self-cleaning system.
Advanced Control: Equipped with Mikster MCC-100 or INDU iMAX 500 microprocessor with process recording.
Industrial Floor: 5mm thick steel floor designed for the heaviest industry trolleys.
Safety: Security release system allows chamber to be opened from the inside.

SPECIFICATIONS

Heating Energy	Heating oil, Natural/Liquefied gas, Electricity, Process steam
Heating Power	54 kW
Trolley Capacity	2 pcs
Air Circulation	Vertical or Horizontal variants available
Controller Model	Mikster MCC-100 / Mikster INDU iMAX 500
Door Configuration	Right-handed or Left-handed (custom layouts available)
Body Construction	Fully hermetic, thermally insulated elements

PROCESS TEMPERATURES

Process	Temperature Range
Drying	0 - 80°C
Smoking	0 - 99°C
Scalding	0 - 90°C
Roasting (Standard)	0 - 90°C
Roasting (Optional)	0 - 180°C
Ventilation Chilling	60°C to ambient

PREMIUM LINE PACKAGE INCLUDED

Complete set of trolleys with rods (Vertical) or rods and wire meshes (Horizontal).
Chimney pipes and roofing installation up to 5 meters above ground level.
Automatic cleaning system and process recording functionality.

CM Machine Services Ltd. | 55 Stafford Drive Unit "I" | Brampton, On L6W 1L3

PH: 905-793-3994 | Contact: [email protected]

FEATURES

Multi-Process Capability: Includes settling, drying, smoking, scalding, roasting, and chilling.
High-Quality Build: Executed entirely of high-quality acid-resistant steel.
Precise Insulation: Side walls (50mm), Ceiling (70mm), and Front/Doors (100mm) for maximum thermal retention.
Smoke Generation: Automatic generator with ignition prevention and self-cleaning system.
Advanced Control: Equipped with Mikster MCC-100 or INDU iMAX 500 microprocessor with process recording.
Industrial Floor: 5mm thick steel floor designed for the heaviest industry trolleys.
Safety: Security release system allows chamber to be opened from the inside.

SPECIFICATIONS

Heating Energy	Heating oil, Natural/Liquefied gas, Electricity, Process steam
Heating Power	54 kW
Trolley Capacity	2 pcs
Air Circulation	Vertical or Horizontal variants available
Controller Model	Mikster MCC-100 / Mikster INDU iMAX 500
Door Configuration	Right-handed or Left-handed (custom layouts available)
Body Construction	Fully hermetic, thermally insulated elements

PROCESS TEMPERATURES

Process	Temperature Range
Drying	0 - 80°C
Smoking	0 - 99°C
Scalding	0 - 90°C
Roasting (Standard)	0 - 90°C
Roasting (Optional)	0 - 180°C
Ventilation Chilling	60°C to ambient

PREMIUM LINE PACKAGE INCLUDED

Complete set of trolleys with rods (Vertical) or rods and wire meshes (Horizontal).
Chimney pipes and roofing installation up to 5 meters above ground level.
Automatic cleaning system and process recording functionality.
