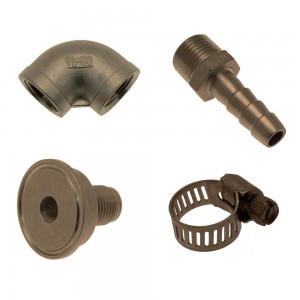

Connector Exploded View Ruhle

  Pos. No.  Part No.  Description  Add. Info  Required
F29353 1 F29353 Hose socket FG30 2313 1/2" 1
F29354 2 F29354 Angle inside-to-inside 90° FG 2023 1/2" 1
F240613 3 F240613 Connector Ø 13 x Ø 50 x 38 1
F21323 4 F21323 Hose clamp HAS 10 Ø 14-27 1
