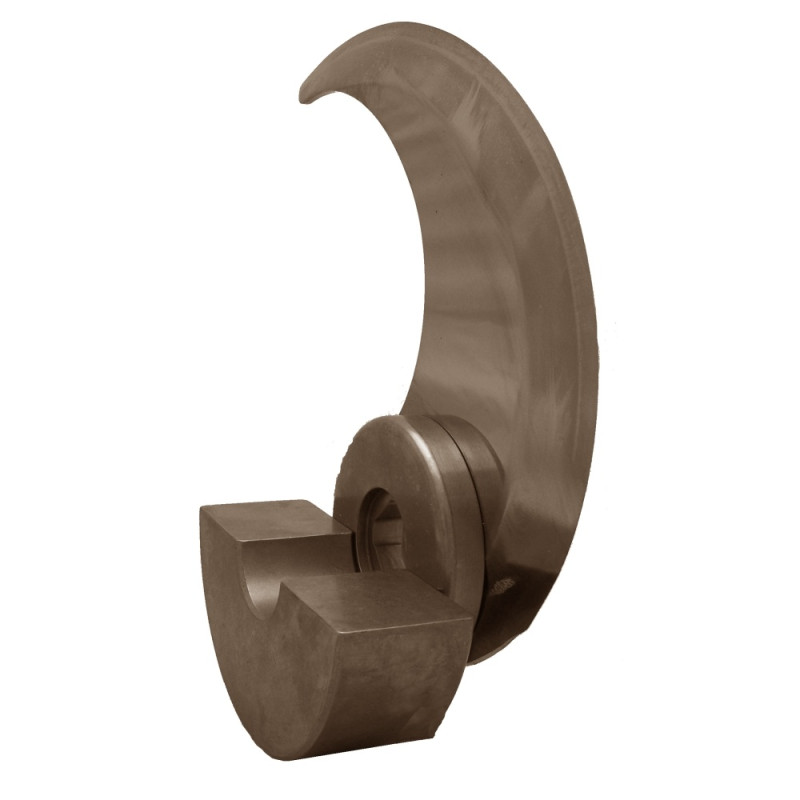

Cutting Knife with Holder cpl. Exploded View No. 74

Cutting Knife with Holder cpl. Exploded View No. 74
Cutting Knife with Holder cpl. Exploded View No. 74
  Pos. No.  Part No.  Description  Add. Info  Required ... Read More
  • Stock: On order
  • Brand: Ruhle
  • Type: F41618

Available Options

Request Quote
Knife Shaft Assembly
Quickview
Knife Shaft Assembly
View Details Request Quotes
Knife Shaft Exploded View
Quickview
Knife Shaft Exploded View
View Details Request Quotes
  Pos. No.  Part No.  Description  Add. Info  Required
1 F26825 Knife support Ø 100 x 25 1
2 F21099 Bolt Ø 10 x 15 2
3 F26822 Weight Ø 45 x Ø 150 x 50 1
4 F22618 Senkschraube DIN7991 M 8 x 30 2
5 F26772 Cutting Knife SR 2/T smooth 252 cutting length 1
6 F20048 Countersunk bolt DIN7991 M 6 x 16 3
