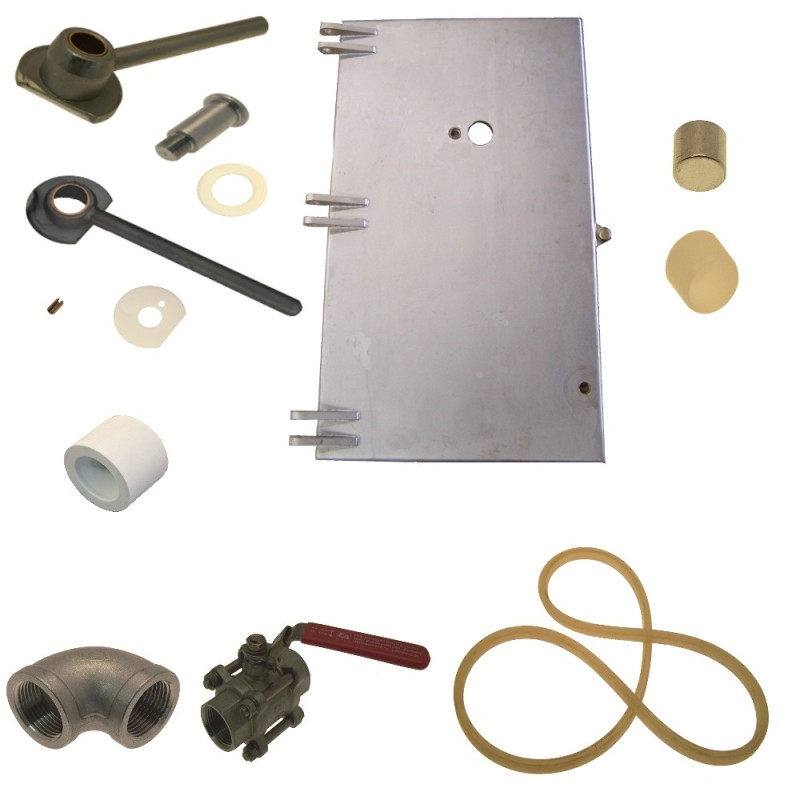

Door Exploded View Ruhle IR112 Injector

Type: 102115
Ships from: FOB Brampton Canada
U/M: Each
Stock: On Order
CM: 2201

* Door Exploded View IR 112:

CM Machine Services Ltd. Product Information

To make Purchase Call 905-793-3994 or Email sales@cmmachineservices.net Prices are subject to change without notice.

Door Exploded View Ruhle IR112 Injector

Type: 102115
Location: FOB Brampton Canada
U/M: Each
Stock: On Order
CM Product Code: 2201

* Door Exploded View IR 112:
--102120 door
--F250510 Bushing
--F20426 Solenoid
--F252820 Seal
--F453108 Lock
--102131 Lock
--F256398 Ball valve
--F256451 Bracket
--105648 Bushing

Door Exploded View Ruhle IR112 Injector

Pos No.	Part No.	Description	Add Info	Required
1	102120	door	IR 112	1
2	F250510	Bushing	Ø 30,1 x Ø 46,4 x 35	1
3	F20426	Solenoid	Ø 10 x 10	1
4	F252820	Seal	13 x 17 x 1430	1
5	F453108	Lock	IR 112	1
6	102131	Lock	IR 112	1
7	F256398	Ball valve	1"	1
8	F256451	Bracket	90° FG 2325 1"	1
9	105648	Bushing	Ø 12 x 9	1

CM Machine Services Ltd. | 55 Stafford Drive Unit "I" | Brampton, On L6W 1L3

PH: 905-793-3994 | Contact: sales@cmmachineservices.net

Description

Door Exploded View Ruhle IR112 Injector

Pos No.	Part No.	Description	Add Info	Required
1	102120	door	IR 112	1
2	F250510	Bushing	Ø 30,1 x Ø 46,4 x 35	1
3	F20426	Solenoid	Ø 10 x 10	1
4	F252820	Seal	13 x 17 x 1430	1
5	F453108	Lock	IR 112	1
6	102131	Lock	IR 112	1
7	F256398	Ball valve	1"	1
8	F256451	Bracket	90° FG 2325 1"	1
9	105648	Bushing	Ø 12 x 9	1
