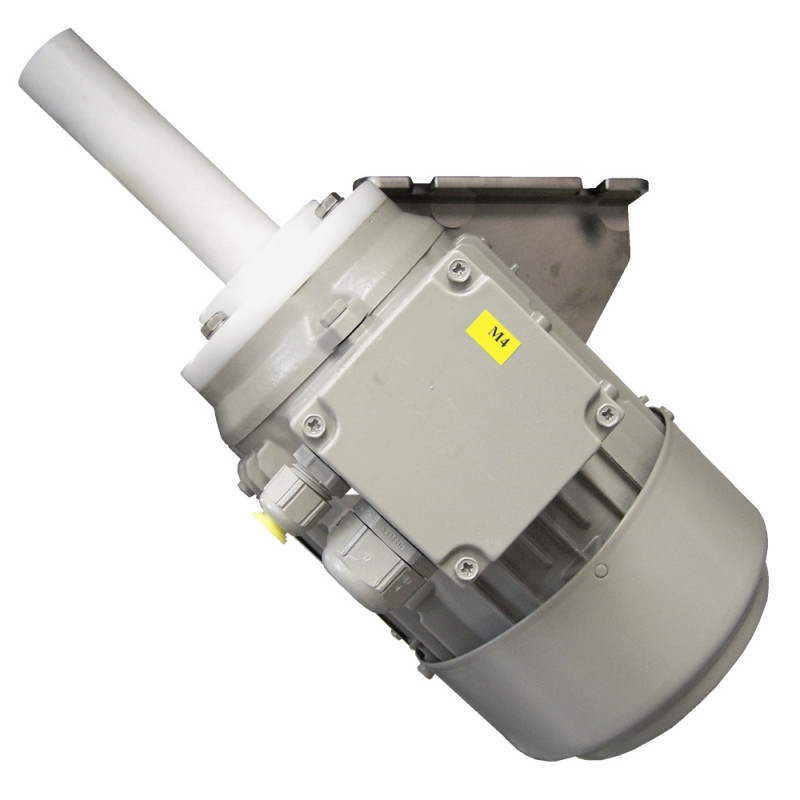

Drive Complete 1 IR56 No. 473 and Higher

Type: 105921
Ships from: FOB Brampton Canada
U/M: Each
Stock: On Order
CM: 1707

* Drive Complete 1 IR 56 Facelift No. 473 and higher:

CM Machine Services Ltd. Product Information

To make Purchase Call 905-793-3994 or Email [email protected] Prices are subject to change without notice.

Drive Complete 1 IR56 No. 473 and Higher

Type: 105921
Location: FOB Brampton Canada
U/M: Each
Stock: On Order
CM Product Code: 1707

* Drive Complete 1 IR 56 Facelift No. 473 and higher:
-- 105799 Bracket
--F20258 Washer
--F24031 Spring lock washer
-- F20203 Hexagonal nut
-- F29326 Flange
-- F20417 Hexagonal bolt
--F241476 bolt
-- F29327 Housing
--F29036 Gear motor
-- F29057 Cable gland

Drive Complete 1 IR56 No. 473 and Higher

Pos No.	Part No.	Description	Add Info	Required
1	105799	Bracket	IR 56	1
2	F20258	Washer	DIN125 A 6,4	8
3	F24031	Spring lock washer	DIN127 B 6	4
4	F20203	Hexagonal nut	DIN934 M 6	4
5	F29326	Flange	Ø 26,5 x Ø 105 x 20	1
6	F20417	Hexagonal bolt	DIN933 M 6 x 16	4
7	F241476	bolt	Ø 14 x 29	1
8	F29327	Housing	Ø 18,3 x Ø 30 x 125	1
9	F29036	Gear motor	WAGC 72K4/2	1
10	F29057	Cable gland	M 25 x 1.5	1
