Drive Shaft Exploded View Ruhle IR56 Injector

Type: F42337
Ships from: FOB Brampton Canada
U/M: Each
Stock: On Order
CM: 1398

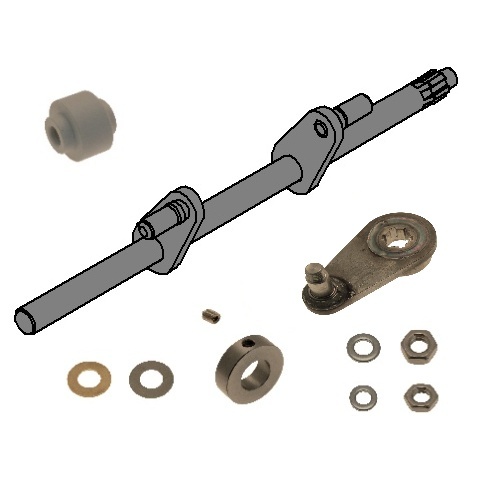

* Drive Shaft Exploded View IR 56:

CM Machine Services Ltd. Product Information

To make Purchase Call 905-793-3994 or Email sales@cmmachineservices.net Prices are subject to change without notice.

Drive Shaft Exploded View Ruhle IR56 Injector

Type: F42337
Location: FOB Brampton Canada
U/M: Each
Stock: On Order
CM Product Code: 1398

* Drive Shaft Exploded View IR 56:
--F441844 Drive Shaft
-- F29341 Rolle
--F440324 Lever
-- F22916 Washer
--F26133 Hexagonal nut
--F20202 Washer
-- F20179 Hexagonal nut
-- F244906 Compensating Disc
--F248683 Compensating Disc
-- F21907 Ring
--F20837 Threaded pin
--F25430 Locking ring

Drive Shaft Exploded View Ruhle IR56 Injector

Pos No.	Part No.	Description	Add Info	Required
1	F441844	Drive Shaft	IR 28/56	1
2	F29341	Rolle	Ø 50 x 45	2
3	F440324	Lever	IR 28/56	1
4	F22916	Washer	DIN125 A 15	1
5	F26133	Hexagonal nut	DIN439 M 14	1
6	F20202	Washer	DIN125 A 13	1
7	F20179	Hexagonal nut	DIN439 M 12	1
8	F244906	Compensating Disc	Ø 20,3 x Ø 39 x 1,5	1
9	F248683	Compensating Disc	Ø 20,3 x Ø 39 x 0,65	1
10	F21907	Ring	Ø 20,1 x Ø 40 x 12	1
11	F20837	Threaded pin	DIN914 M 8 x 10	1
12	F25430	Locking ring	DIN471 Ø 20 x 1,2	1
