Fish & Poultry Template Slicing Machine

Ships from: FOB Brampton, ON Canada (O)
U/M: Each
Stock: On Order
CM: 8161
Note: Shipping to be determined

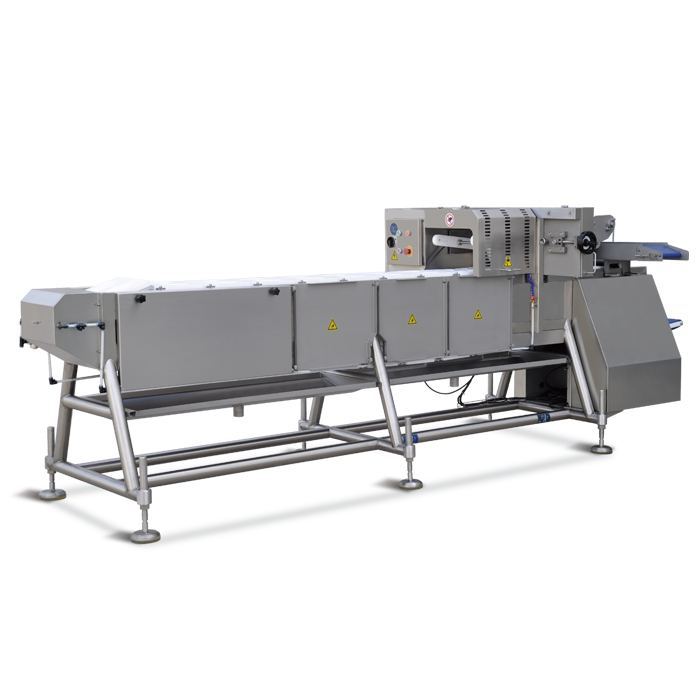

Fish & Poultry Template Slicing Machine

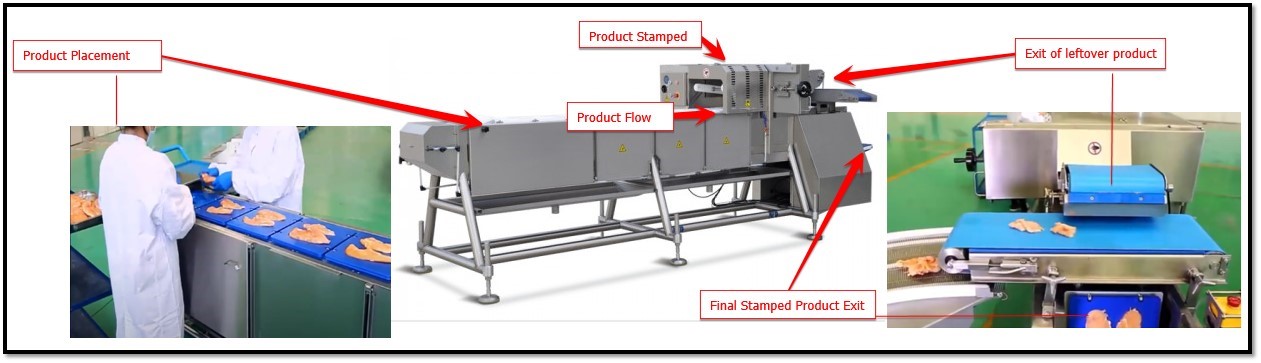

This machine is meant to put the fresh product into the template which then flattens, slices, reduces trim, and outputs the finished product. It produces a uniform type portion that not only adds value per portion but also allows for optimal utilization of fillets.

Applicable to fresh fish and poultry products.

Features:

  • Horizontal slicing and removal of extra parts that do not suit the template
  • Ability to change different templates to get different shapes and weight.
  • Residuals separated automatically.
  • Quick and easy to replace the template.
  • Uses SIEMENS electrical parts, with safety protection device, and is CE approved.
  • Made of stainless steel and engineering plastic, easy to clean, and meets HACCP requirements.
  • Easy to operate
  • Low maintenance cost.

Technical Data:

Template width  300×254mm (single or double lanes)
Production speed Single lane 62pcs/min (product width≤140mm)
Double lanes 124 pcs/min
Weight error ≤4%
Input/Output height  1050±50mm
Power 575V/480V/220V 60hz 3Ph
Overall dimension 4220×1120×1360mm
