Floor Bone Saw 249

Type: Blade length: 98"
Country of Origin: Italy
Ships from: FOB Brampton, ON Canada (O)
U/M: Each
Stock: On Order
Shipping Dimension: 44 X 52 X 83
Shipping Weight: 461 lbs
CM: 8406

Financing Available

Note: Shipping to be determined

* Bone Saw Power Options:

CM Machine Services Ltd. Product Information

To make Purchase Call 905-793-3994 or Email sales@cmmachineservices.net Prices are subject to change without notice.

Floor Bone Saw 249

Type: Blade length: 98"
Location: FOB Brampton, ON Canada (O)
U/M: Each
Stock: On Order
Shipping Dimension: 44 X 52 X 83
Shipping Weight: 461 lbs
CM Product Code: 8406

Financing Available

Note: Shipping to be determined

* Bone Saw Power Options:
--400V 50Hz 3Ph
--230V 50Hz 3Ph
--230V 50Hz 1Ph
--220V 60Hz 3Ph
--220V 60Hz 1Ph

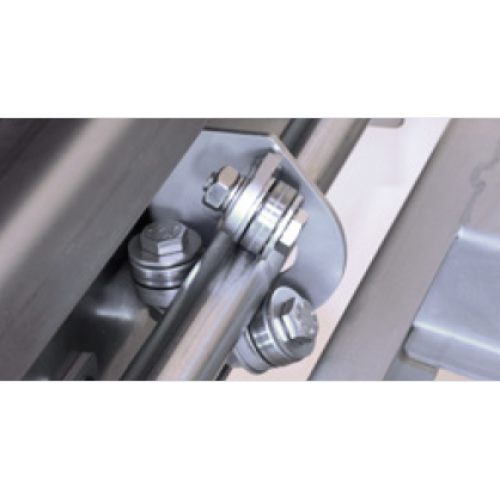

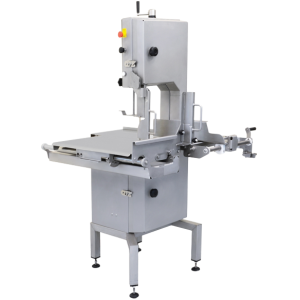

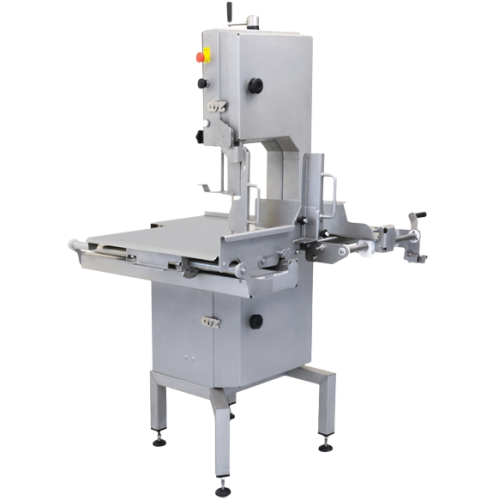

Floor Bone Saw 249 with sliding table

For meat processing centers and fishing industry, supermarkets, and hypermarkets.
Stainless steel structure and casing
Column on the right side. Large working surface. Wide and deep cut.
Smooth surfaces, no dirt traps
Easy cleaning and maintenance operations; REMOVABLE S/S scrap pan, blade scraper and pulley scraper
Stainless steel pulleys with double edge
Blade tightening device with friction brake
Continuous service motor - Electrical mechanical brake
The Brake Motor allows the blade to stop under maximum 4 seconds when the stop button is activated
N.V.R. low tension (24V) safety device, with start, brake release, emergency stop button
Stop safety limit switch in door

249 P: This model is only available with sliding table

Specifications:

Power	kW (HP)	1.1 (1.5)
Motor rpm	r.p.m	900
Pulley diameter	mm	315
Blade length	mm	2.490 x 16
Cut deepness	mm	295
Cutting width	mm	290
Work surface	mm	710 x 690
Cutting speed	m/sec	15
Net weight	kg	167

Made in Italy Bandsaw

CM Machine Services Ltd. | 55 Stafford Drive Unit "I" | Brampton, On L6W 1L3

PH: 905-793-3994 | Contact: sales@cmmachineservices.net

Description

Floor Bone Saw 249 with sliding table

For meat processing centers and fishing industry, supermarkets, and hypermarkets.
Stainless steel structure and casing
Column on the right side. Large working surface. Wide and deep cut.
Smooth surfaces, no dirt traps
Easy cleaning and maintenance operations; REMOVABLE S/S scrap pan, blade scraper and pulley scraper
Stainless steel pulleys with double edge
Blade tightening device with friction brake
Continuous service motor - Electrical mechanical brake
The Brake Motor allows the blade to stop under maximum 4 seconds when the stop button is activated
N.V.R. low tension (24V) safety device, with start, brake release, emergency stop button
Stop safety limit switch in door

249 P: This model is only available with sliding table

Specifications:

Power	kW (HP)	1.1 (1.5)
Motor rpm	r.p.m	900
Pulley diameter	mm	315
Blade length	mm	2.490 x 16
Cut deepness	mm	295
Cutting width	mm	290
Work surface	mm	710 x 690
Cutting speed	m/sec	15
Net weight	kg	167
