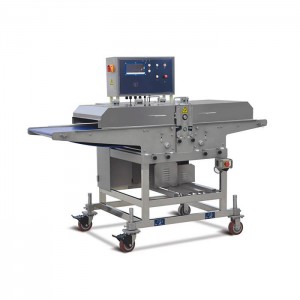

Food Strip Cutting Machine

The high-output Food Strip Cutting Machine is an advanced commercial processing system engineered for precision fresh meat stripping and dicing utilizing a heavy-duty circular blade arrangement. If you are searching for a high-efficiency meat cutting and striping machine near me, this inline workhorse delivers outstanding structural uniformity across fresh beef, pork, and poultry lines. Highly adaptable as a dedicated bacon cutting machine or a high-capacity bacon strips cutting machine in Ontario Canada, this versatile industrial cutting machine and dicing machine handles intensive production loads. The multi-blade layout cuts fresh product cleanly without tearing raw fibers, making this strip cutting machine an indispensable asset for large-scale butchers, jerky manufacturers, and commercial packaging facilities.

Key Features & Mechanical Advantages

Fresh Meat Processing: Specifically optimized to cut fresh meat cuts cleanly; not designed for cooked product lines.
High Cutting Precision: Achieves tight, highly uniform dimensional portion tracking down to a minimum cutting thickness width of 5 mm.

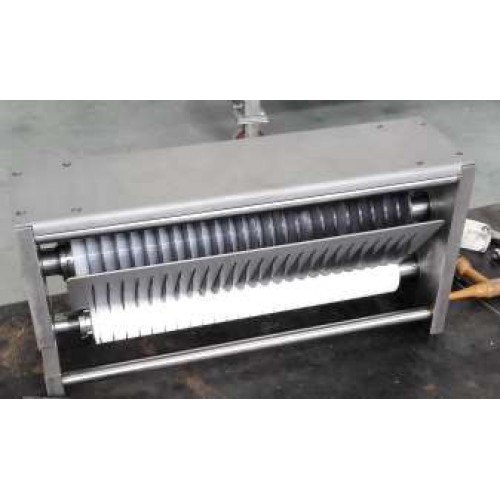

Multi-Blade Combinations: Provides maximum floor efficiency via a multi-blade carrier system that can combine different thickness spacing arrays into a single pass.
Floating Unloading Plates: Outfitted with an anti-stick floating discharge mechanism that prevents soft meat cuts from clinging to or binding between the circular blades.
Variable Speed Conveying: Extended variable-speed modular transport belt reaches velocities up to 18 m/min to guarantee a massive production capacity.
Toolless Cleaning Breakdown: Fabricated with a completely detachable blade carrier sleeve, along with quick-release input and output transport belts for rapid, easy sanitation cycles.
Hygienic Mist Spraying Layout: Features built-in mist spray nozzles that lubricate the circular blades continuously for smooth slicing execution.
Premium Electronics & Hardware: Adopts long-life imported module transport belts paired with high-grade, CE-approved SIEMENS safety components.
Strict HACCP Compliance: Engineered from food-grade stainless steel and robust engineering plastics to provide smooth surfaces that eliminate raw ingredient traps.

Technical Product Specifications

Production Capacity Range	200 - 800 kg/h (Depending on material thickness)
Conveyor Belt Width	500 mm
Conveyor Tracking Speed	3 ~ 18 m/min (Fully Variable Control)
Maximum Product Entry Width	400 mm
Cutting Thickness Range	Min: 5 mm / Max: 45 mm
Logistics Working Height	Input/Output: 1050 ± 50 mm
Power Consumption Load	1.9 kW
Machine Dimensions (L x W x H)	2100 mm × 1060 mm × 1755 mm

Assembled with Components from Leading International Suppliers

Premium Electronics and Hardware Parts from International Suppliers

* Note: Target cutting blade gap profiles can be customized precisely according to specific client production requirements. Change target widths instantly by deploying alternative blade sleeves or spare carrier bars.
