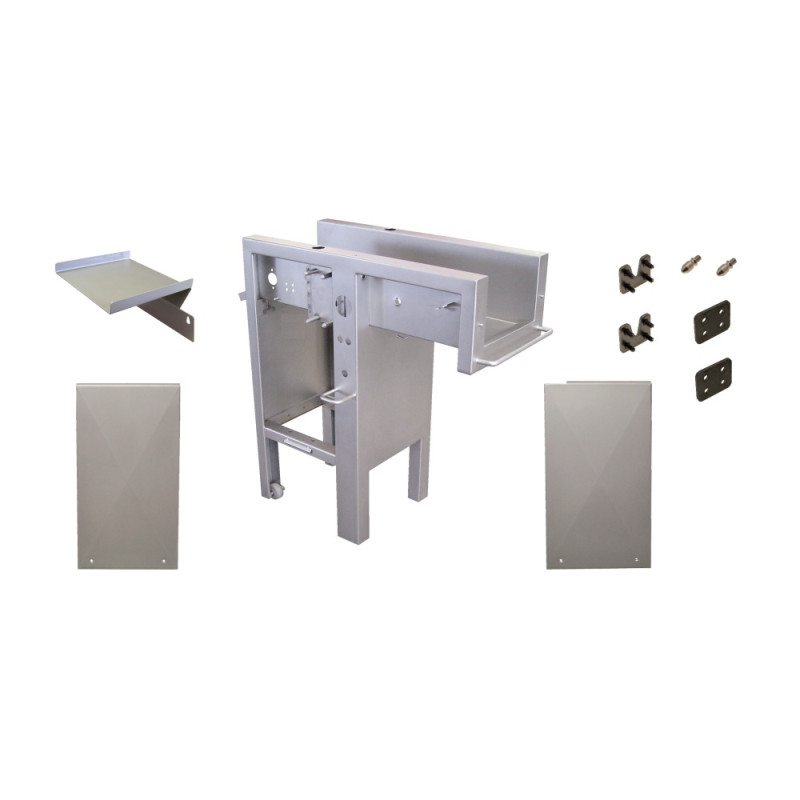

Gestell Assembly Ruhle PR20 Injector No. 2786 and Higher

Type: 107003
Ships from: FOB Brampton Canada
U/M: Each
Stock: On Order
CM: 2055

* Gestell Assembly PR 20 No 2786 and higher:

CM Machine Services Ltd. Product Information

To make Purchase Call 905-793-3994 or Email sales@cmmachineservices.net Prices are subject to change without notice.

Gestell Assembly Ruhle PR20 Injector No. 2786 and Higher

Type: 107003
Location: FOB Brampton Canada
U/M: Each
Stock: On Order
CM Product Code: 2055

* Gestell Assembly PR 20 No 2786 and higher:
--F40233 Gestell
--F41802 Halter
--F21869 Bolzen
--F22869 Bolzen
--F26243 Profil
--F26216 Deckel
--F22332 Deckel
--F28582 Senkschraube
--F21262 Ringfeder
--F21853 Blech
--F24031 Federring
--F20203 Sechskantmutter
--F20259 Sechskantmutter
--F21260 Federring
--F21259 Rolle

Gestell Assembly ruhle PR20 Injector No. 2786 and Higher

Pos No.	Part No.	Description	Add Info	Required
1	F40233	rack	PR 20	1
2	F41802	Bracket	PR 8 - 20	2
3	F21869	bolt	Ø 12 x 33	2
4	F22869	bolt	Ø 16 x 70	2
5	F26243	Profile	410 x 288 x 285 x 2,5	1
6	F26216	Lid	722 x 346 x 22 x 1,5	1
7	F22332	Lid	720 x 360 x 20 x 1,5	1
8	F28582	Countersunk bolt	DIN7991 M 6 x 25	4
9	F21262	Annular spring	Ø 12 x Ø 30 x 2,2	2
10	F21853	plate / sheet	62 x 47 x 4	2
11	F24031	Spring lock washer	DIN127 B 6	2
12	F20203	Hexagonal nut	DIN934 M 6	3
13	F20259	Hexagonal nut	DIN934 M 8	2
14	F21260	Spring lock washer	DIN127 B 8	2
15	F21259	Rolle	Ø 16,5 x Ø 65 x 35	2
